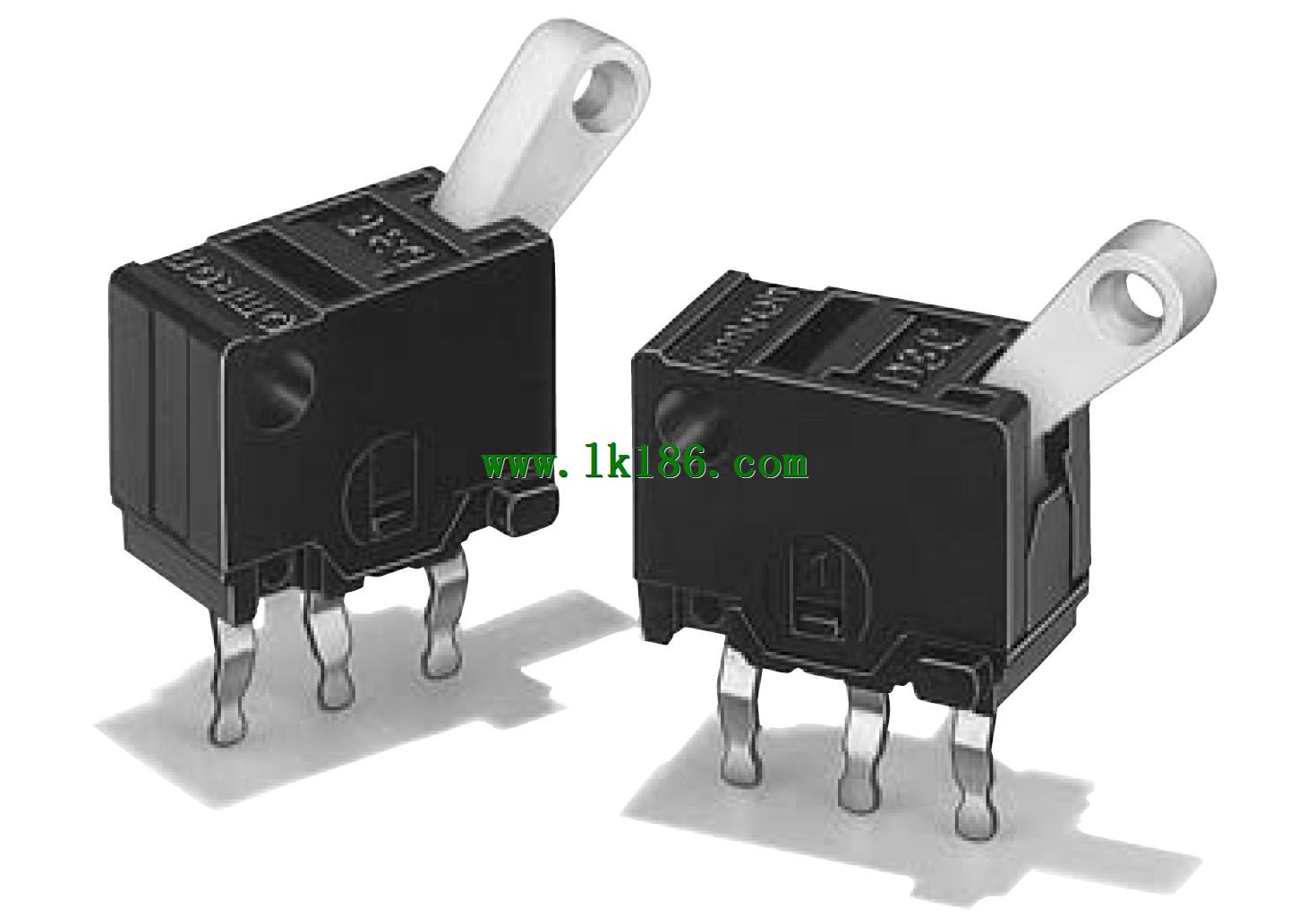

Name: Super small button detection switch
Model: D3C-2220
Action force (OF):0.39N (low load action type).
Switch timing: short circuit type.
Driving rod: return swing lever type.
Sliding type super small detection switch.
Super small (6 x 8 x width high depth 4.2mm), light weight (about 0.3 grams), long stroke 3mm.
Short circuit and non short circuit time built-in sliding device capable of selecting switch.
Widely used in small household electrical appliances, audio equipment, office equipment, communication equipment, etc..
