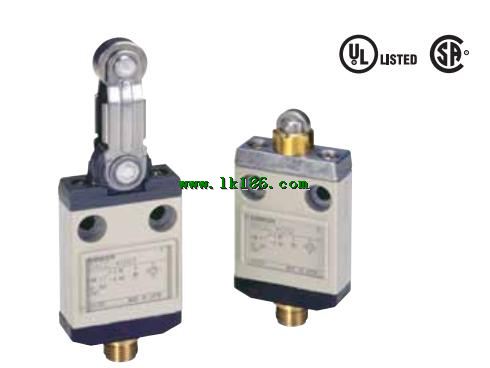

>> D4CC-4024 Miniature Limit Switch Switches are Only 16-mm Thick with Connector OMRON D4CC-4024
D4CC-4024 Miniature Limit Switch Switches are Only 16-mm Thick with Connector OMRON D4CC-4024
Brand:
OMRON
Name: Miniature Limit Switch
Model: D4CC-4024
Ratings: 1 A at 30 VDC.
LED indicator: With indicator.
Actuator: High-sensitivity roller lever.
Many Models Including Roller Lever.
Switches are Only 16-mm Thick with Connector.
New center roller lever models that enable ganged mounting.
of up to 6 Switches.
Cable connectors for easy Switch replacement.
Triple-seal construction to provide IEC IP67 degree of protection.
Operation indicators available for easy monitoring,
(standard indicator is lit when Switch is not operating).
Approved by UL and CSA.
(Ask your OMRON representative for Information on approved models.)
