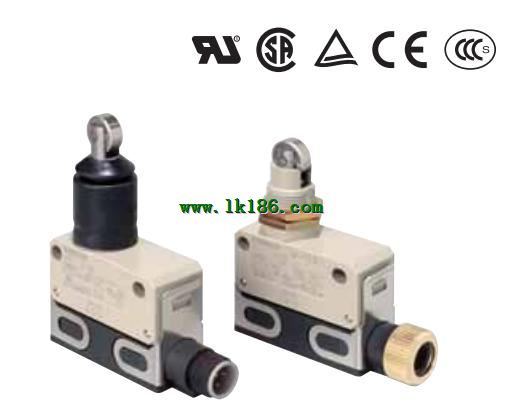

>> D4E-N Series Small Sealed Switch OMRON D4E-N Series A double seal on the head, a complete gasket cover, and,
D4E-N Series Small Sealed Switch OMRON D4E-N Series A double seal on the head, a complete gasket cover, and,
D4E-N Series Introduce |
D4E-N Series Model |
D4E-N Series Catalog/Manual/Instructions/Software download
D4E-N Series Catalog/Manual/Instructions/Software download
Brand:
OMRON
Name: Small Sealed Switch
Model: D4E-N Series
Slim and Compact Switch with Better.
Seal and Ensuring Longer Service.
Life than D4E.
Flat springs with an improved lever ratio of the built-in.
switch ensure smooth snap action and long life expectancy.
Protection cover protects the built-in switch from dust and oil.
Plunger incorporates a tough seal cap that lasts for a long time.
One touch connector eliminates need for tedious wiring,
operations and reduces downtime for wiring and,
maintenance (models with standard, easy-to-use screw,
terminals are also available).
Minute load model with gold cladding is optimal for,
electronic control.
Molded terminal types as well as molded terminal types,
with operating indicator lamps are available for screw,
terminal systems.
Approved by EN, UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for Information on,
approved models.).
No difference in mounting pitch and characteristics,
between D4E-@N and D4E models.
...More relevant models >>>>
