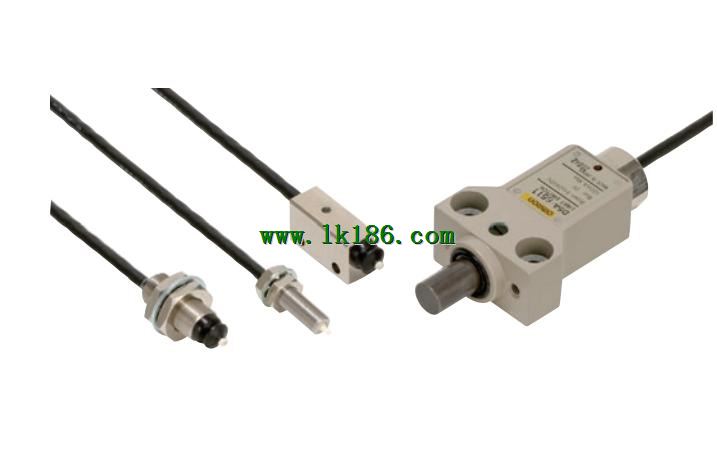

D5A-1200 OMRON D5A-1200 Type: M5 High-precision Switch

Type: winged.
Drive shaft type: semi cylindrical plug type.
Outlet hole: side 2.
Even number: 3.
Rubber material: NBR.
Head and body integration, strength and sealing performance is better, mechanical life is also significantly increased (5 million times).
The most suitable for a variety of machine tools, automatic production line of the order control OMRON D5A-1200.
With drain holes, oil and water can be discharged after immersion D5A-1200 Actuator: Bevel plunger.
Type: Limit.
Operation Indicator: Provided.
Repeat accuracy: 3 µm max.
Operating force OF max: 3.92 N.
Cable lead outlet: Lead outlet, Pre-wired; Length, 3 m.
Degree of protection: IP67.
High-precision Switch for Detecting Micron-unit,
Displacement OMRON D5A-1200.
Ideal for detecting and measuring wear of cutting,
tools or for original point of work.
Ceramic plungers on M5, M8, and slim models for,
superior abrasion resistance and resistance to,
temperature changes.
Direct input possible to microprocessors and,
programmable controllers.
A version with screw-type cable connector available,
for easy installation and maintenance. Output: DPDT OMRON D5A-1200.
Lighting: LED without Voltage Reduction Unit.
Operating voltage: 12 VAC/VDC.
Pushbutton colorsymbol: R: red, Y: yellow; PY: pure yellow
G: green, A: blue; W: white; PW: pure white.
Item: Alternate operation (Self-holding).
Separate Construction with OMRON High-precision Switch.
Cylindrical 16-dia. Body.
Miniature design of 28.5 mm, the smallest class in the industry.
Detachable Switch.
The same contacts can be used for both standard loads and microloads OMRON High-precision Switch.
Easy-to-wire terminal arrangement.
Certified for EN 60947-5-1. Wide Range of Locking-type.
Models Available.
Character height of 4.8 or 3.2 mm makes for easy-to,
view display.
Installation is easy with snap-in mounting.
The series includes a complete range of locking-type,
models that prevent accidental operation OMRON High-precision Switch. Type: square.
Screen mode: no segmentation.
Output: SPDT.
Power supply voltage: DC12V.
Contact type: standard load (AC250V, 3A; DC30V, 3A).
Operation: instantaneous action (auto reset).
Operation Department color: yellow.
In the touch and the ability to protect than OMRON''s previous models have improved.
The micro vvolume design of 23mm is realized D5A-1200.
Micro design and unique combination of soft sensing.
LED has five colors (red, yellow, green, white, and blue).
Built in basic switch improves touch.
Built in basic switches in the previous modell based on the OMRON to improve the protection OMRON D5A-1200.
Chip LED to produce a uniform surface brightness.
From the front panel installation, more convenient.
