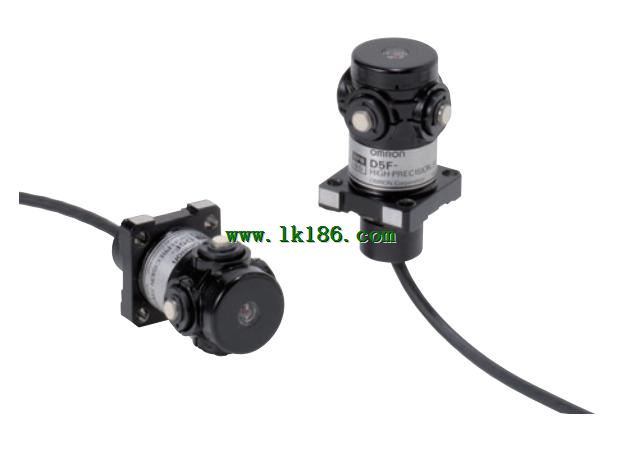

Name: High-precision Optical Switch
Model: D5F-2B10
Output configuration: PNP open collector (+ common).
Contact form: SPST-NC.
Operation indicator: ON when not operated.
Cable length: 1 m.
Optical System Achieves 1-μm Operating Position.
Repeatability in this 4-way Switch.
No-contact structure for high reliability.
Ceramic materials in measuring part for superior resistance to abrasion.
Two different output types (PNP and NPN) available. ,
Less abrasion and damage of mechanical contacts compared,
to switches with contacts, reducing fluctuation in the output.
More compact than previous OMRON models: 40% less mass,
15% lighter across the operating width.
