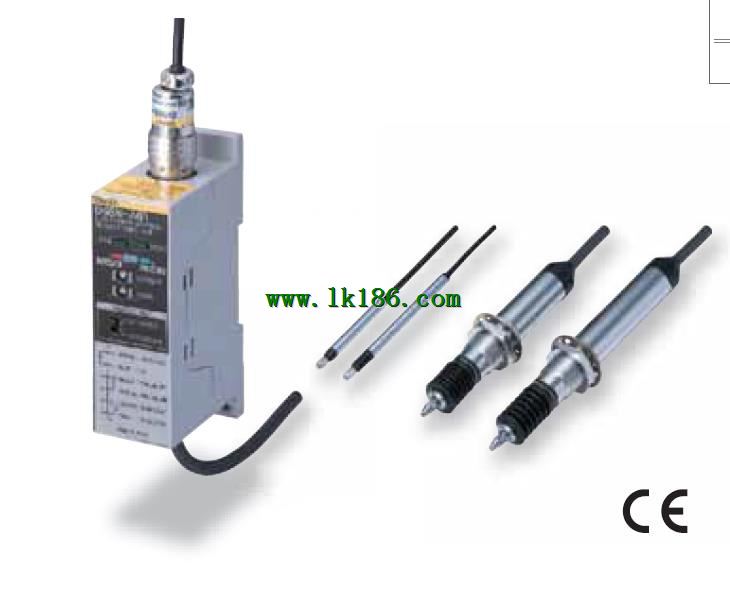

D5SN-S04 OMRON Contact Displacement Sensor OMRON D5SN-S04
Brand:
OMRON
Name: Contact Displacement Sensor
Model: D5SN-S04
Measurement range: 4 mm.
Resolution: 0.4 µm.
Operating force: Approx. 0.7 N.
Five Types of Sensor for Use in a Wide.
Range of Environments.
D5SN-S01/-S04/-S04-L Sensors have a compact and light,
weight design with an ultra-small diameter of 6 mm.
The D5SN-S01 offers a high resolution of 0.1 µm.
D5SN-M05/-M10 Sensors have a robust construction and can,
withstand a horizontal load of 5 N.
D5SN-S01/-S04/-M05/-M10 Sensors ensure IP67 degree of,
protection.
All Sensors have an insulated design.
...More relevant models >>>>
Name: Contact Displacement Sensor
Model: D5SN-S04
Measurement range: 4 mm.
Resolution: 0.4 µm.
Operating force: Approx. 0.7 N.
Five Types of Sensor for Use in a Wide.
Range of Environments.
D5SN-S01/-S04/-S04-L Sensors have a compact and light,
weight design with an ultra-small diameter of 6 mm.
The D5SN-S01 offers a high resolution of 0.1 µm.
D5SN-M05/-M10 Sensors have a robust construction and can,
withstand a horizontal load of 5 N.
D5SN-S01/-S04/-M05/-M10 Sensors ensure IP67 degree of,
protection.
All Sensors have an insulated design.
