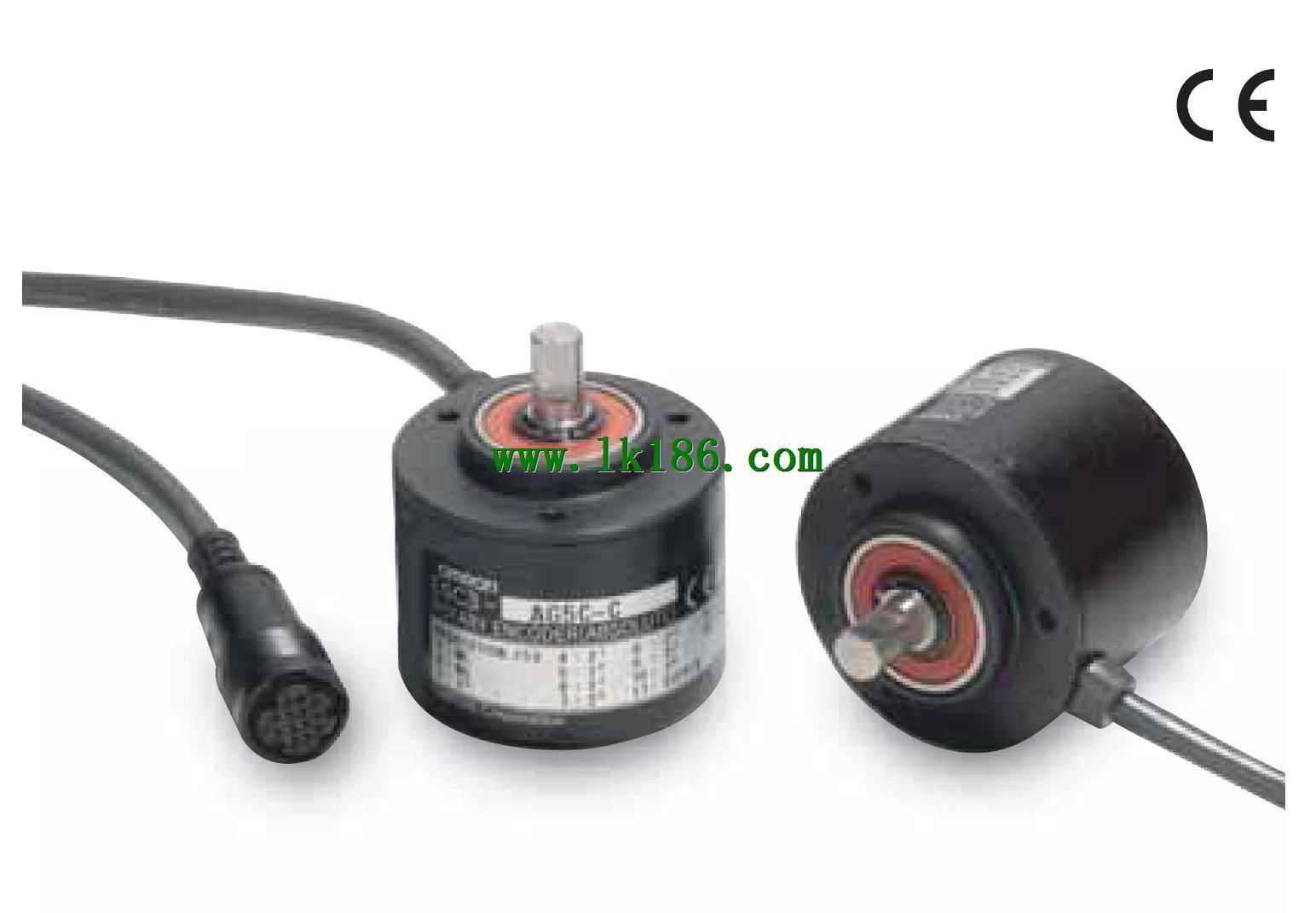

E6C3-AG5B OMRON E6C3-AG5B
Brand:
OMRON
Name: Slim Encoder with Diameter of 50 mm
Model: E6C3-AG5B
Power supply voltage: 12 to 24 VDC.
Output configuration: Open-collector output (PNP).
Output code: Gray.
Resolution (divisions): 256, 360, 720, 1,024.
Connection method: Pre-wired Model (1 m).
Rugged Rotary Encoder.
Absolute model.
External diameter of 50 mm.
Resolution of up to 1,024 (10-bit).
IP65 (improved oil-proof protection with sealed bearings).
Optimum angle control possible in combination with PLC or,
Cam Positioner.
...More relevant models >>>>
Name: Slim Encoder with Diameter of 50 mm
Model: E6C3-AG5B
Power supply voltage: 12 to 24 VDC.
Output configuration: Open-collector output (PNP).
Output code: Gray.
Resolution (divisions): 256, 360, 720, 1,024.
Connection method: Pre-wired Model (1 m).
Rugged Rotary Encoder.
Absolute model.
External diameter of 50 mm.
Resolution of up to 1,024 (10-bit).
IP65 (improved oil-proof protection with sealed bearings).
Optimum angle control possible in combination with PLC or,
Cam Positioner.
