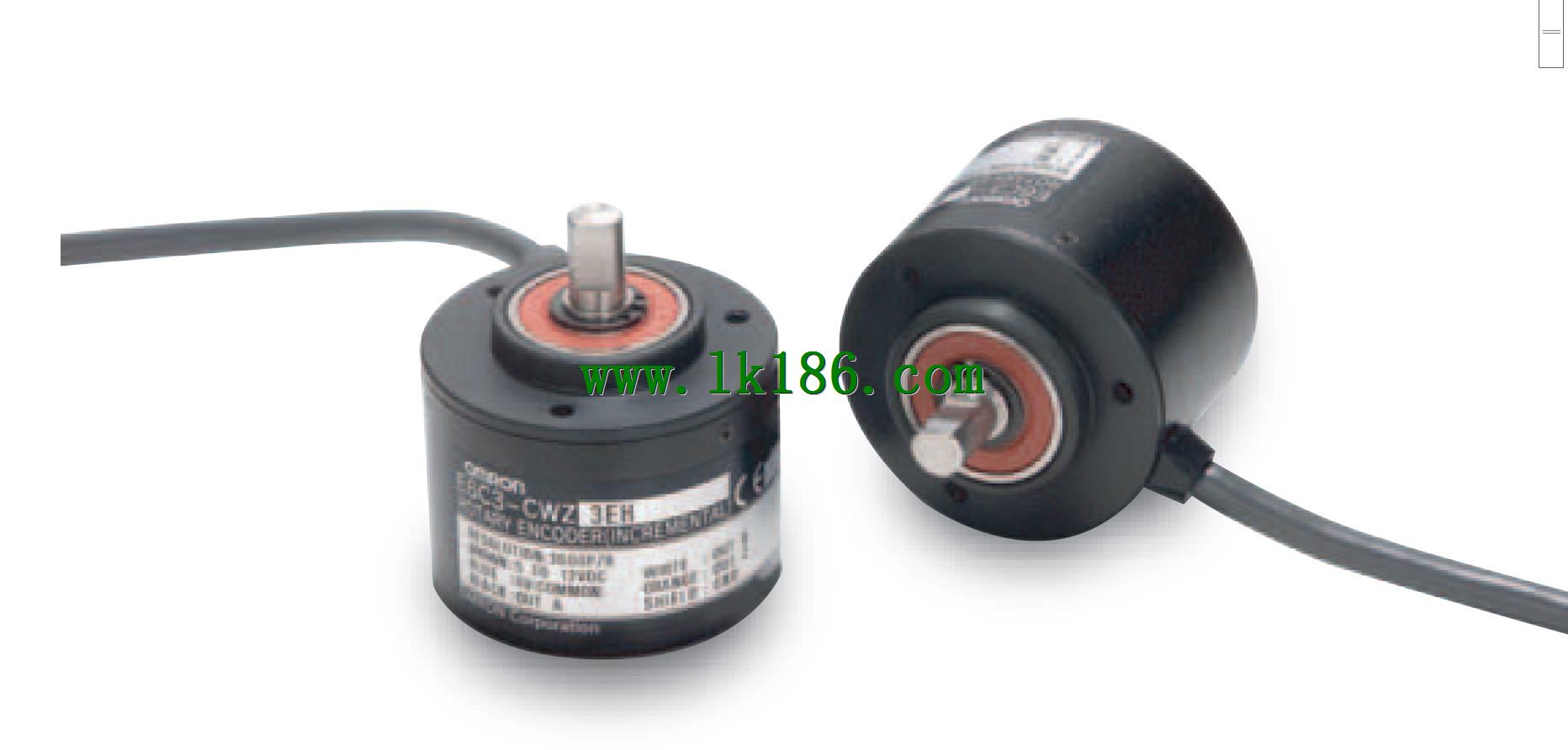

E6C3-CWZ3EH Rugged Incremental 50-mm-dia Rotary Encoder OMRON E6C3-CWZ3EH Output configuration: Complementary output
Brand:
OMRON
Name: Rugged Incremental 50-mm-dia. Rotary Encoder
Model: E6C3-CWZ3EH
Power supply voltage: 5 to 12 VDC.
Output configuration: Voltage output.
Resolution (pulses/rotation): 100, 200; 300, 360, 500; 600, 720, 800;
1,000, 1,024, 1,200; 1,500, 1,800, 2,000v; 2,048, 2,500, 3,600.
Connection method: Pre-wired (1 m) (See note.).
Rugged Rotary Encoder.
Incremental model.
External diameter of 50 mm.
Resolution of up to 3,600 ppr.
IP65 (improved oil-proof construction with sealedbearings).
Superior shaft loading performance.
(radial: 80 N, thrust: 50 N)
