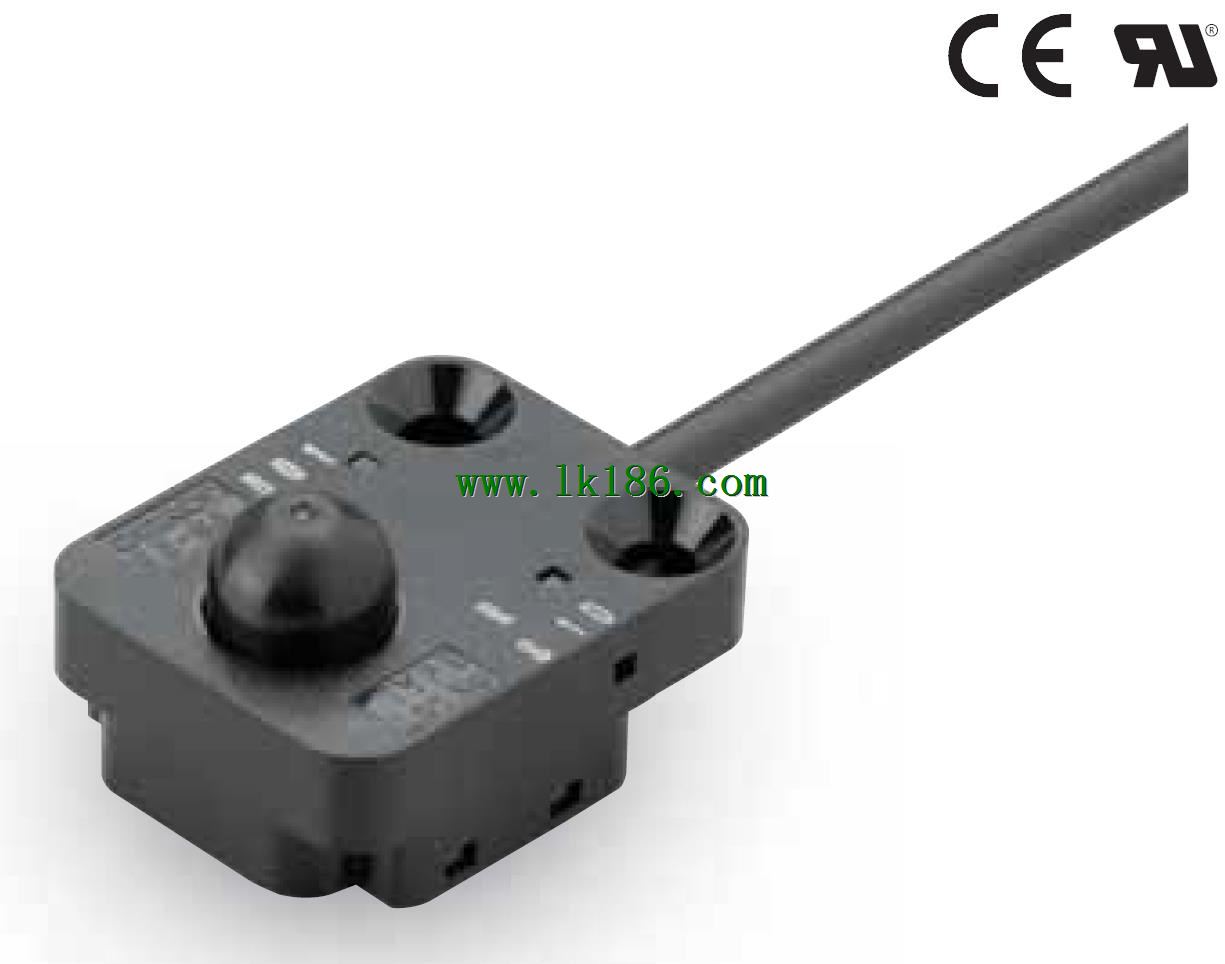

EE-SA801A 1M OMRON EE-SA801A 1M Pushbutton-type Photomicrosensor
Brand:
OMRON
Name: Pushbutton-type Photomicrosensor
Model: EE-SA801A 1M
Sensing distance: (See note 2.)0 to 3.5 mm(pressed position) (See note 1.).
Sensing method: Pushbutton.
Operation mode: ON with no load.
Cable length: 1 m.
Model: NPN output .
Using a pushbutton enables,
accurately detecting difficult-to-detec objects.
Conforms to standards for semiconductor FOUP cassettes to ena,
accurately detecting FOUP cassettes without being affected by the,
material, color, or reflectance of the bottoms of the cassettes.
Thin design enables mounting in a wider range of applications, e.g.,
on transfer arms.
Increased visibility with 4-direction indicator.
Optical detection of actuator operation provides a long life,
(mechanical life: 5 million operations min.).
Models available with PNP or NPN output.
Models are available with very flexible robot cable.
...More relevant models >>>>
Name: Pushbutton-type Photomicrosensor
Model: EE-SA801A 1M
Sensing distance: (See note 2.)0 to 3.5 mm(pressed position) (See note 1.).
Sensing method: Pushbutton.
Operation mode: ON with no load.
Cable length: 1 m.
Model: NPN output .
Using a pushbutton enables,
accurately detecting difficult-to-detec objects.
Conforms to standards for semiconductor FOUP cassettes to ena,
accurately detecting FOUP cassettes without being affected by the,
material, color, or reflectance of the bottoms of the cassettes.
Thin design enables mounting in a wider range of applications, e.g.,
on transfer arms.
Increased visibility with 4-direction indicator.
Optical detection of actuator operation provides a long life,
(mechanical life: 5 million operations min.).
Models available with PNP or NPN output.
Models are available with very flexible robot cable.
