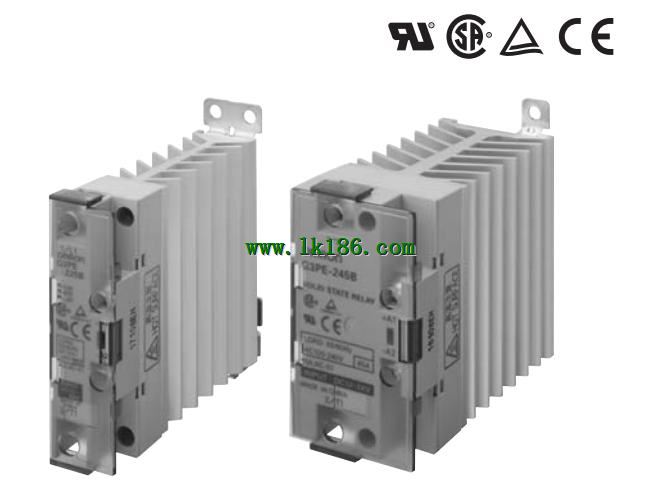

>> G3PE-225B-3H DC12-24 Solid State Contactors for Heaters Applicable load: 25 A, 100 to 240 VAC OMRON G3PE-225B-3H DC12-24
G3PE-225B-3H DC12-24 Solid State Contactors for Heaters Applicable load: 25 A, 100 to 240 VAC OMRON G3PE-225B-3H DC12-24
Brand:
OMRON
Name: Solid State Contactors for Heaters
Model: G3PE-225B-3H DC12-24
Number of phases: Three-phase.
Insulation method: Phototriac coupler.
Operation indicator: Yes (yellow).
Rated input voltage: 12 to 24 VDC.
Zero cross function: Yes.
Type: Externally attached heat sinks.
Applicable load: 25 A, 100 to 240 VAC.
Number of pole: 3.
Compact, Slim-profile SSRs with Heat Sinks.
Solid State Contactors for Three-phase.
Heaters Reduced Installation Work.
with DIN Track Mounting.
RoHS compliant.
Surge pass protection improved surge dielectric strength,
for output currents. (OMRON testing).
Slim design with 3-phase output and built-in heat sinks.
DIN Track mounting types and screw mounting types are available.
All DIN Track mounting types mount to DIN Track.
(applicable DIN Track: TR35-15Fe (IEC 60715)).
Conforms to UL, CSA, and EN standards (TÜV certification).
