>> H7CX-A4WSD-N Multifunction Counter/Tachometer OMRON H7CX-A4WSD-N

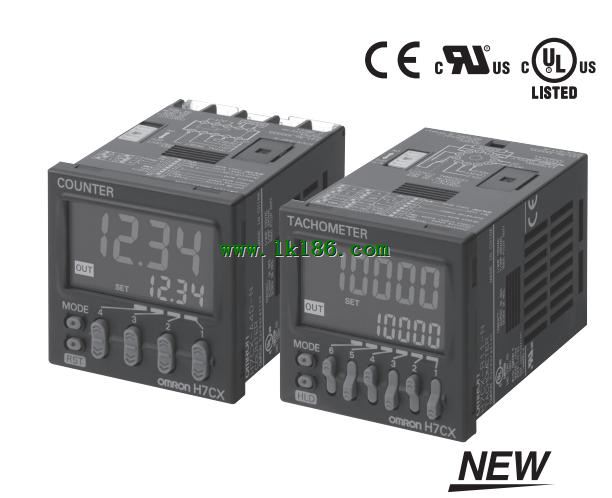

H7CX-A4WSD-N Multifunction Counter/Tachometer OMRON H7CX-A4WSD-N
Brand:
OMRON
Name: Multifunction Counter/Tachometer
Model: H7CX-A4WSD-N
Type: H7CX-A Series.
Classification: Preset counter.
Configuration: 1-stage preset counter, 2-stage preset counter,
Total and preset counter, Batch counter, Dual counter, Twin counter.
External connections: Screw terminals.
Settings: 2-stage.
Display digit: 4 digits.
Outputs: Transistor output (DPST).
Power supply voltage: 12 to 24 VDC.
Ultra-compact Counter Provides More,
Complete Functionality.
Basic Features.
Short body with depth of only 59 mm (for 12 to 24-VDC Models with,
Screw Terminals).
Better readability with character height of 12 mm on 4-digit models,
and 10 mm on 6-digit models.
The present value display characters can be switched between red,
green, and orange.
Safety and Reliability.
New set value limit and counter functions have been added.
Other Features.
Front Panel can be changed to white or light gray.
New models with two tachometer inputs and two tachometer outputs have,
been added to the series.
