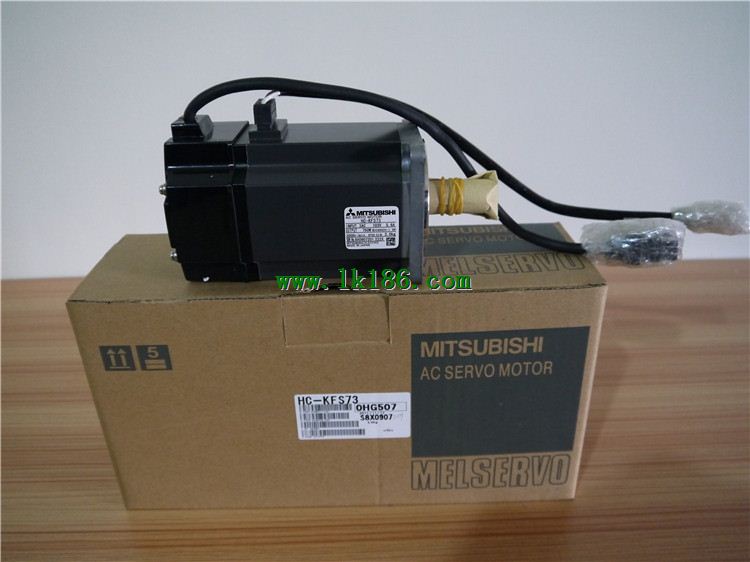

HC-KFS73 MITSUBISHI Low inertia small power motor HC-KFS73

Brand: MITSUBISHI
Name: Low inertia small power motor
Model: HC-KFS73
Motor series: low inertia, low power.
Rated output power: 0.75kw.
Rated speed: 3000r/min.
Whether with brake: No.
Shaft end: Standard (straight).
Protection level: IP55 does not include the shaft part and the connector.
Features: low inertia is particularly suitable for high speed motor (6000 or 12000 RPM / min) of general industrial machinery.
Application example 1: drive belt drive, robot.
Application example 2: assembly machine, sewing machine, X-Y working table.
Application example 3: food manufacturing machinery, semiconductor manufacturing equipment, knitting machine and embroidery machine.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 11.0kw.
Interface type: CC-Link communication type (built-in positioning function).
Power specification: three phase AC200V.
Positioning operation by setting position and rotational speed data in the positioning table and receiving the start signal from the main controller MITSUBISHI HC-KFS73.
The setting of the position and speed of the positioning table, as well as the start and stop operation can be completed through CC-Link communication HC-KFS73
By using the MR-J3-D01 extension IO unit, the DI/O instruction can be used to select and locate the table.
(CC-Link can not be used for MR-J3-D01 communications).
With built-in positioning function of the servo amplifier, can be set through the CC-Link communications and speed data MITSUBISHI HC-KFS73. (corresponding to the CC-Link version: Ver.1.10)
Can be achieved through the CC-Link communications to start, stop and monitoring and other operations.
Serial communication reduce wiring.
Distributed servo control system can be built by CC-Link communication.
The parameters of unit MR-PRU03 (optional) the parameter setting, operation and monitoring more convenient MITSUBISHI HC-KFS73.
The servo amplifier can be used for speed control operation.
When the two stations are occupied, the speed can be set directly by the remote register. 1 axis servo amplifier.
MITSUBISHI general AC servo amplifier MELSERVO-J4 series MITSUBISHI Low inertia small power motor.
Rated output: 11.0kw.
Interface: General purpose.
Power supply: three phase AC400V.
0.6kW and 1kW above the servo amplifier MITSUBISHI Low inertia small power motor.
Servo amplifier supporting universal interface.
Servo amplifier for universal interface.
Speed / torque control of position control and analog voltage command can be carried out by using pulse train command.
Support Max instruction pulse frequency 4 Mpulses/s.
Improve mechanical properties by high performance motor MITSUBISHI Low inertia small power motor.
By improving the resolution and processing speed of the encoder,
The rotating servo motor has hiigher precision and better performance of rotation HC-KFS73.
Only open a key type of adjustment function, can be carried out including mechanical resonance filter, high end seismic control II, low pass filter servo gain adjustment.
Easilyy start advanced seismic function, it can maximize the mechanical properties MITSUBISHI HC-KFS73.
It can automatically adjust the required response settings automatically.
