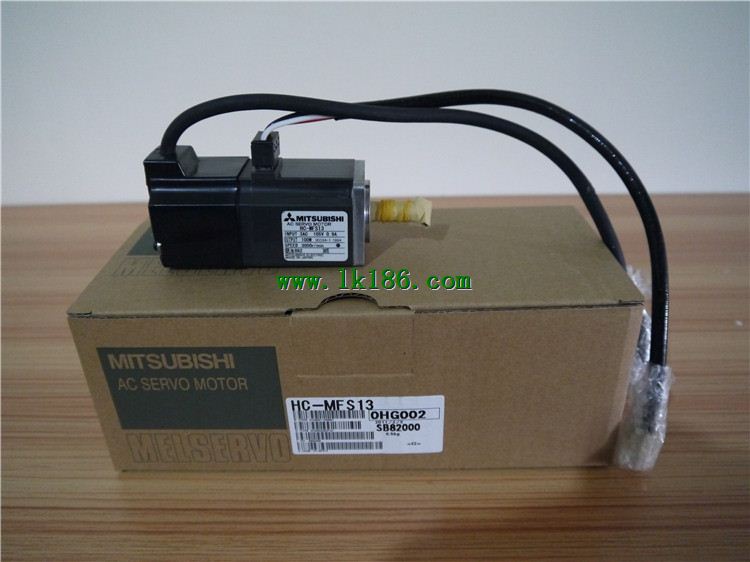

HC-MFS13 MITSUBISHI HC-MFS13 Low inertia small power motor

Motor series: medium inertia, medium power.
Rated output power: 0.5kw.
Rated speed: 2000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).
Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications MITSUBISHI HC-MFS13.
Application examples: transmission machinery, robots, X-Y working platform HC-MFS13
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 0.1kw.
Interface type: SSCNET type III fiber communication MITSUBISHI HC-MFS13.
Power specification: single phase AC200V.
High speed serial communication between the SSCNET and the servo amplifier by using the fastest up to 0.44ms communication cycle,
A fully synchronous control system can be constructed.
It is only necessary to insert the special optical fiber into the joint to form SSCNET III network, which greatly reduces the wiring work and reduces the possibility of false wiring MITSUBISHI HC-MFS13.
Due to the adoption of the optical fiber communication, the anti noise ability can be greatly improved and the long distance wiring of 50 meters (maximum 800 meters x 16 axes) can be realized.
A servo amplifier to meet the full closed loop control function MR-J3-B-RJ006 MITSUBISHI Low inertia small power motor.
Suitable for mechanical servo optimization and adjustment!
More advanced optimization adjustment function and control function to maximize mechanical properties MITSUBISHI Low inertia small power motor. Motor series: low inertia, medium and small capacity.
Using a serial absolute / incremental encoder.
Rated output power: 2.0kw.
Rated speed: 2000rpm.
With the brake: without.
Shaft end: straight shaft.
Comparison of single phase induction motor and servo motor MITSUBISHI Low inertia small power motor.
The working principle of the AC servo motor is similar to that of the single phase induction motor,
But the rotor resistance of the former is much larger than that of the latter,
So the servo motor is compared with the single machine asynchronous motor,
There are three notable features:
1, large starting torque.
2, a wide range oof operation HC-MFS13.
3, no rotation phenomenon.
AC servo motor running smoothly, low noise.
But the control characteristic is non-linear, and because the rotor resistance is big, the loss is big, the efficiency is low,
Therefore, comparred with the same capacity DC servo motor, the volume is large and the weight is heavy,
So it is only suitable for 0 MITSUBISHI HC-MFS13. 5-100W small power control system.
