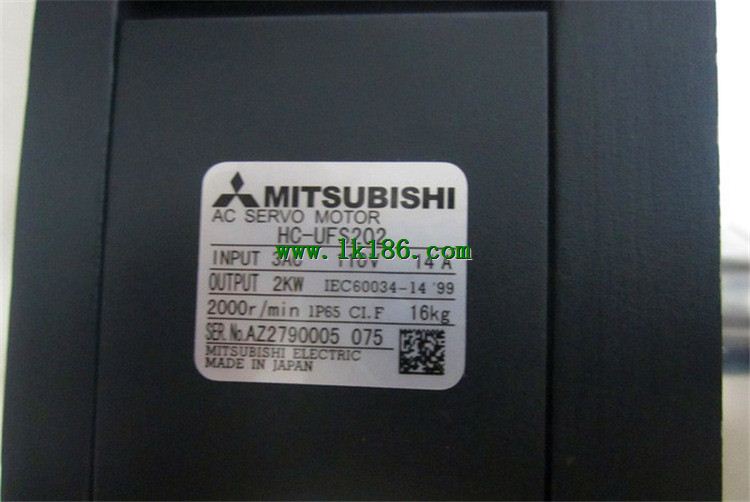

HC-UFS202 Low inertia medium power motor MITSUBISHI HC-UFS202
Brand:
MITSUBISHI
Name: Flat type medium and small power motor
Model: HC-UFS202
Motor series: flat type, medium and small power.
Rated output power: 2.0kw.
Rated speed: 2000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).
Features: flat type design makes this more suitable for installation in space.
Application examples: robot, food manufacturing machinery.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.
