Brand: OMRON

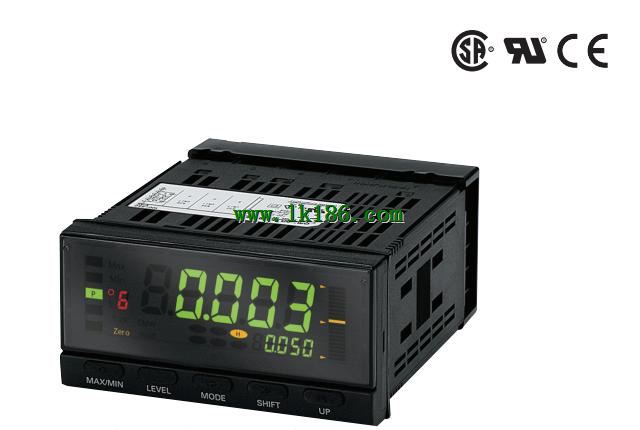

Name: Linear Sensor Indicator
Model: K3HB-S Series
Linear Sensor Indicator for High-speed, High,
precision Measurement and Discrimination.
Easy recognition of judgement results using color display that can be,
switched between red and green.
Equipped with a position meter that represents measured amounts and,
relative positions.
Develop a variety of measurement and discrimination applications us,
ing external event inputs.
Series expanded to include DeviceNet models.
Short body with depth of only 95 mm (from behind the front panel),
or 97 mm for DeviceNet models.
UL certification approval (Certification Mark License).
CE Marking conformance by third party assessment body.
Water-resistant enclosure conforms to NEMA 4X (equivalent to IP66).

Input type: PNP input type.
Event input terminal 5 points (S-TMR, HOLD, RESET) is equipped with.
External power 80mA DC12V.
Note: K3HB-RPB-A, K3HB-RNB-A is not equipped with event input.
No output: -.
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC/DC24V.
Digital rotating pulse meter with high speed measurement for 50kHz OMRON K3HB-S Series.
Action determine the color, can switch the green / Red 2 kinds of color display K3HB-S Series
Measurement of 50kHz high speed pulse.
Rotary encoder and a variety of ON/OFF pulse signals, the most up to 50kHz of high-speed pulse measurement.
Rotation measurement of high speed rotating objects can be carried out.
Support without electricityHighly Visible LCD Display with 2-color (Red and Green) LEDs OMRON K3HB-S Series.
Contact, NPN, PNP, or voltage pulse input.
Front-panel key operation for easy setting.
Average processing function suppresses flicker.
Includes scaling, auto-zero time, startup compensation time functions.
Easy confirmation of max/min display.
Short 80-mm depth (measured from edge of face plate).
Finger protective cover (standard equipment) guards against electric shock OMRON K3HB-S Series.
Water- and dust-proof NEMA4X (IP66 equivalent) front panel.
Recognized to U.S. and Canadian requirements under the Compo,
nent Recognition Program of UL.
CE marking.
Built-in external power supply (12 VDC, 40 mA). Supply voltage: 100 to 240 VAC OMRON Linear Sensor Indicator.
8-digit total counter: Black.
DIN 72 x 36-mm Total Counter/Time Counter with.
Easy-to-read Displays and Water and Oil.
Resistance Equivalent to IP66 OMRON Linear Sensor Indicator.
Large, easy-to-read displays: 15-mm-high characters for 6-digit mod,
els; 12-mm-high characters for 8-digit models.
High-visibility, negative transmissive LCD display with built-in red LED,
backlight at low power consumption.
IP66 with oil resistance and NEMA4 are achieved by unifying the front,
with the casing case and using oil-resistant materials and parts OMRON Linear Sensor Indicattor K3HB-S Series.
Compact (66 mm) body.
Switch 6-digit models between total counter and time counter operation,
Just change a switch setting for either an NPN or PNP input.
Supports both external resetting and manual resetting.
Finger-pprotection terminal block cover prevents electrical shock and,
conforms to VDE0106, Part 100 OMRON K3HB-S Series.
Safety standards: UL, CSA, EMC (EN 61326), CE Marking.
