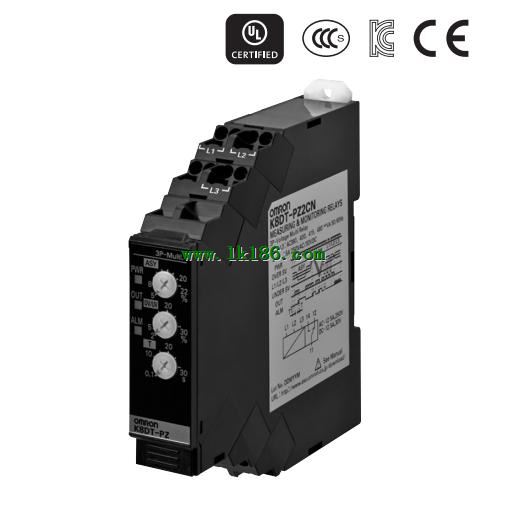

Name: Three-phase Voltage
Model: K8DT-PZ Series
Protect motors and other equipment from unstabl.
voltages in the power supply system.
Detect overvoltages, undervoltages, voltage.
asymmetry, phase sequence, and phase loss for,
three-phase power supplies.
Phase loss detection while the motor is operating.
Global power supply support. (Changed with a switch.).
Greater resistance to inverter noise.
Width of 17.5 mm to reduce space required in panels.
Push-In Plus Terminal that reduce wiring work.
The use of cage clamps enables wiring with bare stranded wires.
Double-insertion holes for crossover wiring (all terminals).
UL listed for easy shipping to North America.
Certification is pending for LR standards.
Models added with transistor outputs for superior contact reliability.
...More relevant models >>>>
Name: Three-phase Voltage
Model: K8DT-PZ Series
Protect motors and other equipment from unstabl.
voltages in the power supply system.
Detect overvoltages, undervoltages, voltage.
asymmetry, phase sequence, and phase loss for,
three-phase power supplies.
Phase loss detection while the motor is operating.
Global power supply support. (Changed with a switch.).
Greater resistance to inverter noise.
Width of 17.5 mm to reduce space required in panels.
Push-In Plus Terminal that reduce wiring work.
The use of cage clamps enables wiring with bare stranded wires.
Double-insertion holes for crossover wiring (all terminals).
UL listed for easy shipping to North America.
Certification is pending for LR standards.
Models added with transistor outputs for superior contact reliability.
Appearance: there are F4 shell, R2 shell.
Circuit structure and open circuit mode: single contact 1C, voltage, no voltage, DC circuit breaker.
Rated current: AC5A.
Rated frequency: 50/60Hz (switching).
Current adjustment range: time limit elements: 3-3.5-4-4.5-5-6A, 6 shunt;
Instantaneous elements: 20-30-40-50-60A-, 6 shunt OMRON K8DT-PZ Series.
