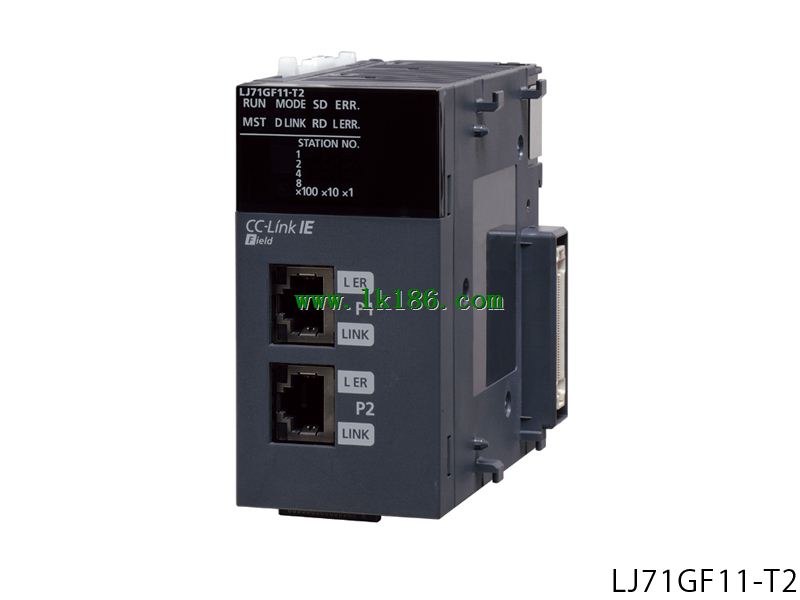

>> LJ71GF11-T2-CM MITSUBISHI LJ71GF11-T2-CM Transmission speed: 1Gbps
LJ71GF11-T2-CM MITSUBISHI LJ71GF11-T2-CM Transmission speed: 1Gbps
Brand:
MITSUBISHI
Name: IE CC-Link live network master / local station module
Model: LJ71GF11-T2-CM
"IE Field CC-Link master / local station
Transmission speed: 1Gbps.
Remote input / output: 16384 points.
Remote register: 8192 words.
Can be applied to the serial number of the top 5 for the "13012" and after the CPU module.
Simply set the parameters, you can easily start the network.
Simply use the Works2 GX, set the network parameters in the 1 master station, you can easily connect all the slave stations.
Also, when you need to change the system, you only need to change the parameters.
High degree of freedom network
Build star, linear, star and linear mixed model, and ring network,
Therefore, can freely set the scene equipment.
When you use HUB, you just need to connect the cable to the free port to build the network easily,
Additional equipment and re layout of the corresponding is also more simple. "
