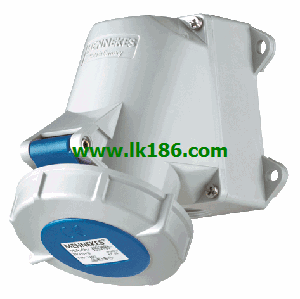

MENNEKES 1880 Poles:4p Wall mounted receptacle with TwinCONTACT 1880
Brand:
Mennekes
Name: Wall mounted receptacle with TwinCONTACT
Model: 1880
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1880.
Ampere:32A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.
...More relevant models >>>>
Name: Wall mounted receptacle with TwinCONTACT
Model: 1880
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1880.
Ampere:32A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.
Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1168.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES 1880.
screwless spring terminals.
standard flange dimensions 1880
suitable for through wiring.
20° inclination.
receptacles optional fitted with auxiliary contact.Product Name:Receptacle combination
Part No.:98326.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz:50-60 Hz.
Protection type:IP44.
screw terminals MENNEKES 1880.
CEE- and receptacle SCHUKO® in one enclosure.
receptacle SCHUKO® fused with 1 MCB 16A, 1p, B.Product Name:Wall mounted receptacle
Part No.:7033.
Ampere:63A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standrad .
Protection type IP67.
screw terminals MENNEKES 1880.
SoftCONTACT.
contactor and electrical interlock.
3 pole fuse socket D III (E 33).Product Name:Wall mounted receptacle
Part No.:5643A.
Ampere:63A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals MENNEKES Wall mounted receptacle with TwinCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES Wall mounted receptacle with TwinCONTACT.
screw terminals.
SoftCONTACT.
switched.
mechanical DUO-interlock.
DIN rail.
receptacles can be padlocked.Product Name:Panel mounted receptacle
Part No.:1146A.
Ampere:63A.
Poles:3p.
Voltage:110V.
Earth position :4h.
Hertz 50-60Hz MENNEKES Wall mounted receptacle with TwinCONTACT.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
SoftCONTACT.
20° inclination.
products with pilot contact: part no. + index P.Product Name:Wall mounted receptacle
Part No 1880. :3152.
Ampere:32A.
Poles:5p.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom MENNEKES 1880.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.
Part No.:1168.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES 1880.
screwless spring terminals.
standard flange dimensions 1880
suitable for through wiring.
20° inclination.
receptacles optional fitted with auxiliary contact.Product Name:Receptacle combination
Part No.:98326.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz:50-60 Hz.
Protection type:IP44.
screw terminals MENNEKES 1880.
CEE- and receptacle SCHUKO® in one enclosure.
receptacle SCHUKO® fused with 1 MCB 16A, 1p, B.Product Name:Wall mounted receptacle
Part No.:7033.
Ampere:63A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standrad .
Protection type IP67.
screw terminals MENNEKES 1880.
SoftCONTACT.
contactor and electrical interlock.
3 pole fuse socket D III (E 33).Product Name:Wall mounted receptacle
Part No.:5643A.
Ampere:63A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals MENNEKES Wall mounted receptacle with TwinCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES Wall mounted receptacle with TwinCONTACT.
screw terminals.
SoftCONTACT.
switched.
mechanical DUO-interlock.
DIN rail.
receptacles can be padlocked.Product Name:Panel mounted receptacle
Part No.:1146A.
Ampere:63A.
Poles:3p.
Voltage:110V.
Earth position :4h.
Hertz 50-60Hz MENNEKES Wall mounted receptacle with TwinCONTACT.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
SoftCONTACT.
20° inclination.
products with pilot contact: part no. + index P.Product Name:Wall mounted receptacle
Part No 1880. :3152.
Ampere:32A.
Poles:5p.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom MENNEKES 1880.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.
...More relevant models >>>>
