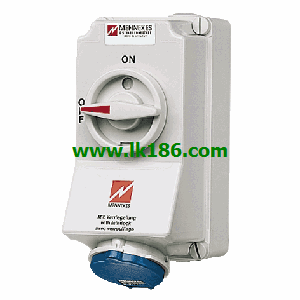

MENNEKES 7002A Part No:5462A MENNEKES 7002A

Product Name:Cepex wall mounted receptacle
Part No.:4162.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
with safety lock.
two keys MENNEKES 7002A.
cannot be dismantled when locked.
on request with identical locks.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø 7002AProduct Name:Receptacles
Part No.:3769.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67 MENNEKES 7002A.
screw terminals
highly resistant to chemicals
highly heat resistant contact carrier
nickel plated contacts
with 4 external fixings
one cable entry at top, one blind cable entry (can be cut out) at bottomProduct Name:Wall mounted receptacle
Part No.:5106A.
Ampere:32A.
Poles:4p.
Voltage:500V.
Earth position :7h
Hertz50-60 Hz.
Connection technology:screw terminals MENNEKES 7002A.
Contact: standard.
Protection type:IP44.
screw terminals.
switched.
mechanical DUO-interlock.
receptacles can be padlocked.Product Name:Panel mounted receptacle with TwinCONTACT
Part No MENNEKES Wall mounted receptacle. :3385.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT MENNEKES Wall mounted receptacle.
Contact: standrad.
Protection type IP44.
screwless spring terminals.
suitable for through wiring.
straight.
blanking flange to close unused apertures part no. 41419.Product Name:Panel mounted receptacle with TwinCONTACT
Part No MENNEKES Wall mounnted receptacle 7002A. :3485.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES 7002A.
screwless spring terminals.
suitable for through wiring.
20° inclination.
