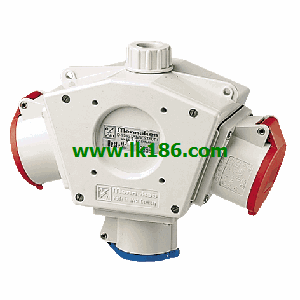

MENNEKES 92896 Part No:92896 DELTA-BOX receptacle combination 92896

Product Name:AMAXX® receptacle combination
Part No.:931761.
Fitted with:1 CEE 16A, 4p, 400V
4 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p, C
1 MCB 16A, 1p+N, C
1 off button.
Pre-fuse max:100A.
InA :32A MENNEKES 92896.
RDF:1 92896
Connection/feeder cable:for 1 cable up to 5 x 25 mm².
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side MENNEKES 92896.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.Product Name:AMAXX® receptacle combination
Part No.:930035.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
2 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 3p+N, C
2 MCB´s 16A, 1p+N, C.
Pre-fuse max.:40A.
InA:38A.
RDF:0 MENNEKES 92896. 6.
Connection/feeder cable:for 1 cable up to 5 x 25mm².
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation MENNEKES DELTA-BOX receptacle combination.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES DELTA-BOX receptacle combination.
fusing behind a transparent cover.Product Name:Receptacle strip
Part No.:96702.
Fitted with:1 CEE 16A, 5p, 400V
1 CEE 16A, 3p, 230V
1 SCHUKO® 16A, 230V MENNEKES DELTA-BOX receptacle combination 92896.
Connection/feeder cable:for 1 cable up to 5 x 10mm².
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44.
pre-wired for installation MENNEKES 92896.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.
