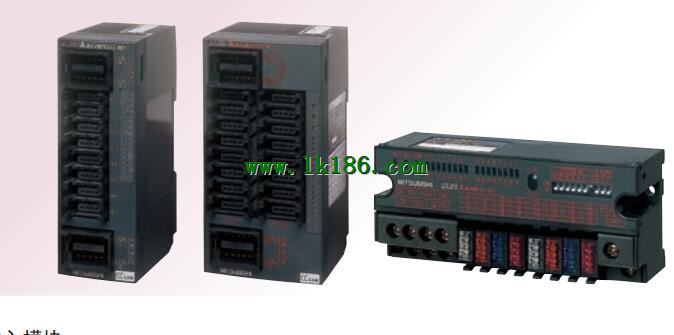

>> MITSUBISHI AJ65SBTC4-16DT2 Input points: 8 points Fast connector type DC input / output module AJ65SBTC4-16DT2
MITSUBISHI AJ65SBTC4-16DT2 Input points: 8 points Fast connector type DC input / output module AJ65SBTC4-16DT2
Brand:
MITSUBISHI
Name: Fast connector type DC input / output module
Model: AJ65SBTC4-16DT2
Input type: DC input, positive common end.
Input points: 8 points.
Enter the response time: 1.5ms the following.
Rated input voltage / current: DC24V/5mA.
Output form: transistor output, leakage type.
Output points: 8 points.
OFF leakage current: 0.1mA.
Output protection function: No.
Rated load voltage / current: DC24V/0.5A.
External connection: 4 wire.
Fast connector type.
Simple wiring through quick connector.
Can be installed along the 6 direction.
MITSUBISHI PLC program simulation debugging
