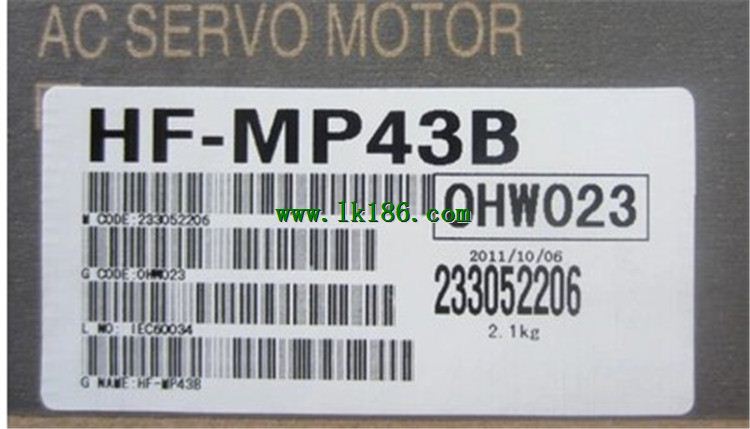

MITSUBISHI HF-MP43B Rated output: 04kw MITSUBISHI HF-MP43B

MITSUBISHI Ultra low inertia small power servo motorHF-MP43B

HF-MP43B Introduce | HF-MP43B Catalog/Manual/Instructions/Software download

Brand: MITSUBISHI
Name: Ultra low inertia small power servo motor
Model: HF-MP43B
Servo motor series: ultra low inertia, low power.
Rated output: 0.4kw.
Rated speed: 3000r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Features: ultra low inertia is very suitable for high frequency operation.
IP level: IP65.
Application example:
1, insert machine.
2, assembly machinery.
Rotary servo motor.
Numerous motor series and wide motor power range can be used to meet different applications.
The protection level of the HF-KP/HF-MP/HC-LP/HC-RP/HC-UP servo motor to improve the environmental safety is IP65 (except the shaft part).

Type: MR-J_B series.
Rated output: 2.0KW.
Interface: standard.
Servo system according to the system structure can be divided into open loop servo system, closed loop servo system, semi closed loop system, compound control system.
The closed loop automatic control system with feedback is composed of a position detecting part, a deviation amplifying part, an executing part and a controlled object MITSUBISHI HF-MP43B HF-MP43B
Servo system must have good controllability, high stability and high adaptability.
Note that the control of the signal is good after the disappearance of the signal, can immediately stop the turn;
High stability is the torque with the increase of speed and uniform decline; adaptability is fast, sensitive, and ring state quality is good MITSUBISHI HF-MP43B.
According to the types of servo drives are classified, there are three kinds of electric, hydraulic or electric hydraulic.
If the servo system is divided according to the function, then there is a measuring servo and power servo system;
Analog servo and power servo system; position servo and acceleration servo system.
The electric servo system can be divided into two categories: DC DC servo system and AC AC servo system based on the electrical signals MITSUBISHI HF-MP43B.
AC AC servo system also has two kinds of asynchronous motor servo system and synchronous motor servo system. 1 axis servo amplifier.
MITSUBISHI general AC servo amplifier MELSERVO-J4 series MITSUBISHI A two axis servo drive.
Rated output: 3.5kw.
Interface: General purpose.
Power supply: three phase AC400V.
0.6kW and 1kW above the servo amplifier MITSUBISHI A two axis servo drive.
Servo amplifier supporting universal interface.
Servo amplifier for universal interface.
Speed / torque control of position control and analog voltage command can be carried out by using pulse train command.
Support Max instruction pulse frequency 4 Mpulses/s.
Improve mechanical properties by high performance motor MITSUBISHI A two axis servo drive.
By improving the resolution and processing speed of the encoder,
The rotating servo motor has hiigher precision and better performance of rotation HF-MP43B.
Only open a key type of adjustment function, can be carried out including mechanical resonance filter, high end seismic control II, low pass filter servo gain adjustment.
Easilyy start advanced seismic function, it can maximize the mechanical properties MITSUBISHI HF-MP43B.
It can automatically adjust the required response settings automatically.
