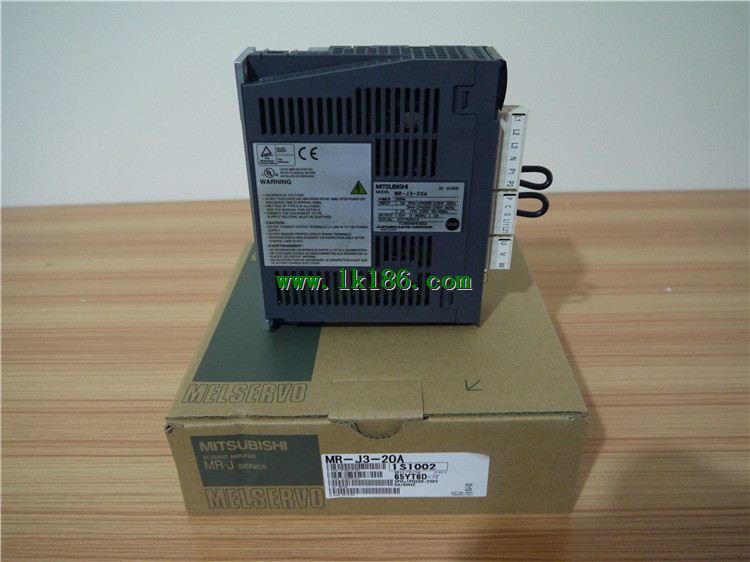

MITSUBISHI MR-J3-20A Can choose the position, speed and torque control mode MITSUBISHI MR-J3-20A

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 0.4kw.
Interface type: general pulse interface type.
Power specification: single phase AC100V.
Pulse train and analog input as universal interface.
Can choose the position, speed and torque control mode.
The use of advanced tuning features such as advanced vibration suppression control and adaptive filter,
Greatly improve the performance of the machine MITSUBISHI MR-J3-20A MR-J3-20A
MR-J3, your partner.
Higher performance, more features, more convenient to use.
Highest performance in the industry.
Speed response frequency up to 2.1kHz. Motor series: low inertia, medium capacity.
Using a serial absolute / incremental encoder.
Rated output power: 2 MITSUBISHI MR-J3-20A. 0kw.
Rated speed: 3000rpm.
With the brake: without.
Shaft end: straight shaft.
Performance comparison of servo motor and stepping motor.
Stepper motor as an open-loop control system, and modern digital control technology has the essential link.
In the current domestic digital control system, stepping motor is widely used.
With the emergence of digital AC servo system, AC servo motor is more and more used in digital control system MITSUBISHI MR-J3-20A.
In order to adapt to the development trend of digital control, most of the motion control system adopts stepping motor or full digital AC servo motor as executive motor.
Although they are similar in control mode (pulse train and directional signal), there are great differences in performance and application MITSUBISHI Low inertia medium power motor.
The use performance of the two are compared. Motor series: ultra low inertia, low power MITSUBISHI Low inertia medium power motor.
Rated output power: 0.05kw.
Rated speed: 3000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP55 does not include the shaft part and the connector.
Features: ultra low inertia is suitable for high frequency operation MITSUBISHI Low inertia medium power motor.
Application examples: the insertion device, the assembly machine. Type: HA-FE series.
Rated output: 0.4KW.
Rated speed: 3000r/min.
Electromagnetic brake: there.
Control complex, easy to achieve intelligent,
The electronic commutation method is flexible and can be changed by square wave or sine wave.
Motor maintenance free, high efficiency, low operating temperature,
Electromagnetic radiation is very small, long life, can be used in a variety of environments.
AC servo motor is brushless motor, which is divided into synchronous and asynchronous motor,
Synchronous machines are commonly used in motion control,
Its power range, you can do a lot of power.
Large inertia, the maximum rotation speed is low, and with the increase of power and rapid reduction.
So it is suitable for the application of low speed and stable operation.
The rotor of the servo motor is permanent magnet,
Drive controlledd U/V/W three phase electric electromagnetic field,
The rotor rotates under the action of the magnetic field,
At the same time the motor comes with the encoder feedback signal to the drive,
According to the feedback value and thhe target value, the driver is compared,
Adjust the rotor rotation angle MITSUBISHI MR-J3-20A MR-J3-20A.
The accuracy of the servo motor is determined by the accuracy of the encoder.
