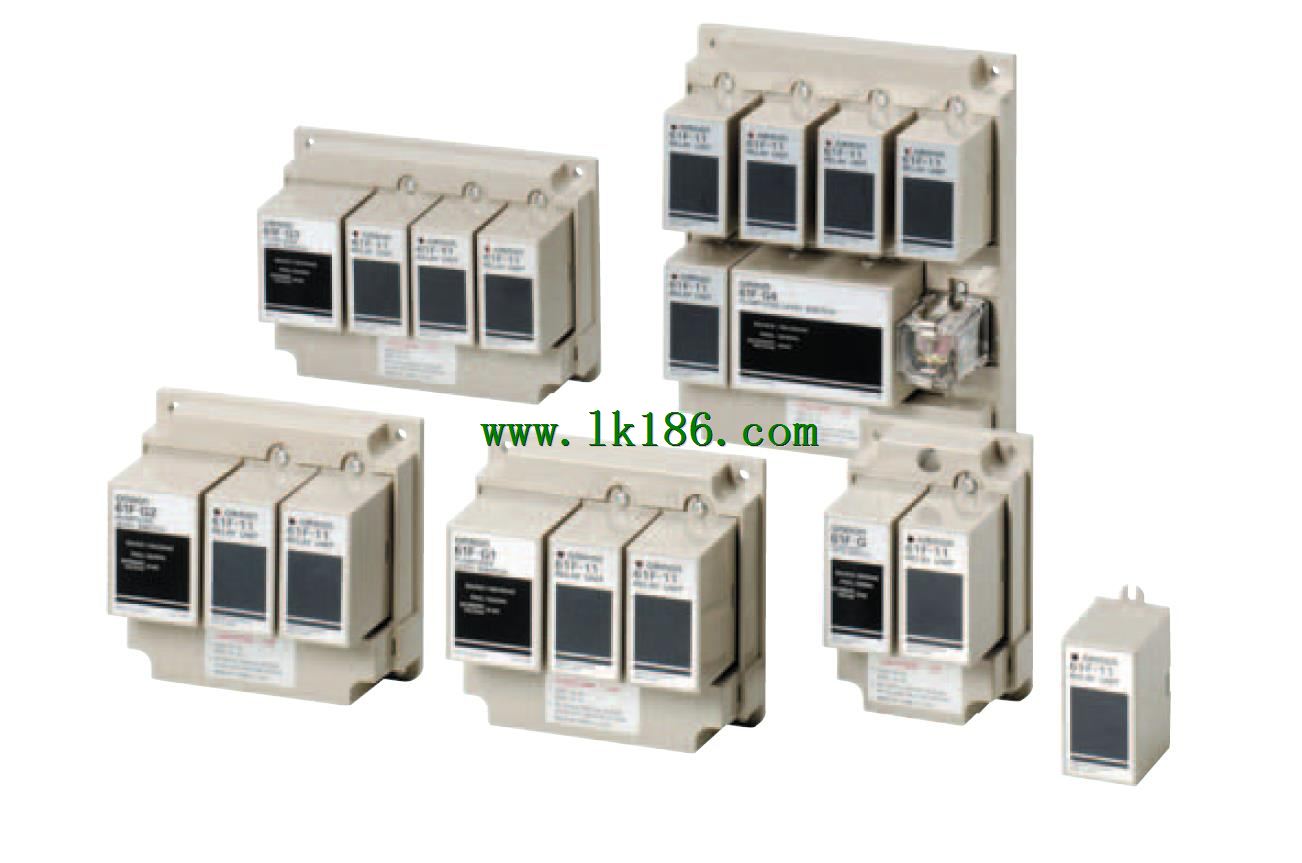

Modular panel direct mounting type, easy to install and maintain the basic type.
Purpose: long distance use (4km).
Improved update. Reduce standby power consumption, and then achieve lightweight.
Standby power consumption reduced to 85% of the company''s previous products. (61F-GN)
The quality is reduced to less than 85% of the company''s previous products. (61F-G3N, G4N)
With LED action display function, so that the state of action at a glance OMRON 61F-IL 4KM.
By improving the reliability of internal relays (tiny load 1mA DC5V), the PLC input becomes possible
61F-IL 4KM
The electrode side terminals and other wiring terminals are separated, so the wiring operation is simple.
Installation method can choose the JEM agreement, DIN guide rail installation, screw installation in 3 ways.
Type: G3N type, both full of water, water shortage alarm function of automatic supply and drainage OMRON 61F-IL 4KM.
Package product name: 61F-G3N base * 1, 61F-11_ unit * 3.
Purpose: General use. Appearance: Knob-type Selector Switch A22W,
LED lighting (without Voltage Reduction Unit).
Number of notches: 2 notches.
Resetting method: Manual.
Output: SPST-NO.
Operating voltage: 12 VAC/VDC.
Illumination color: R (red); Y (yellow); G (green); A (blue) OMRON 61F-IL 4KM.
Install in 22-dia. or 25-dia. Panel Cutout.
Lever for easily mounting and removing the Switch Unit.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type,
(round-type) crimp terminals OMRON Basic type no float switch.
IP65 oil resistance (non-lighted models).
IP65 (lighted models). Appearance: Round/Projection type LED lighting,
(without Voltage Reduction Unit)A22L-T OMRON Basic type no float switch.
Output: SPST-NO + SPST-NO.
Lighting: LED.
Operating voltage: 6 VAC/VDC.
Operation: Alternate operation (self-holding).
Illumination color: R (red); Y (yellow); G (green); W (white); A (blue).
Install in 22-dia OMRON Basic type no float switch. or 25-dia. Panel Cutout.
(When Using a Ring).
Lever for easily mounting and remmoving the Switch Unit 61F-IL 4KM.
Increase wiring efficiency with three-row mounting of Switch Blocks.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounteed using either open-type (fork-type) or closed-type OMRON 61F-IL 4KM.
(round-type) crimp terminals.
IP65 oil resistance (non-lighted models).
IP65 (lighted models).
