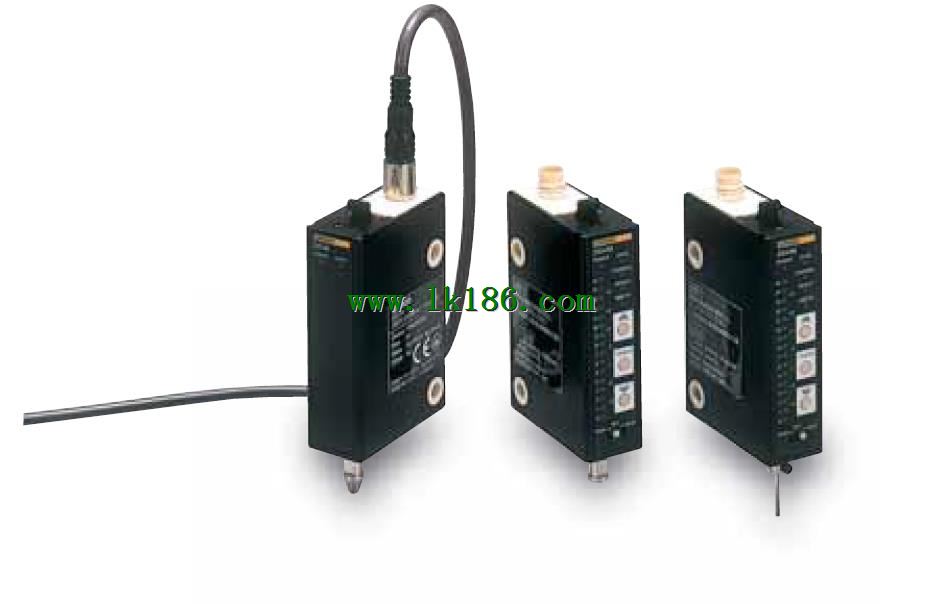

OMRON D5VA-3B1 20-mA linear output corresponding to the 0- to 5-mm measure, Contact Displacement Sensors D5VA-3B1
Brand:
OMRON
Name: Contact Displacement Sensors
Model: D5VA-3B1
Measurement range: 5 mm.
Output specifications: 4 to 20 mA.
Actuator: Ball type.
Resolution: 10 µm.
Contact Displacement Sensor with Built-in.
Amplifier That Enables In-line Measurement.
of a Wide Range of Objects with a Low.
Operating Force.
Works with a low operating force (0.29 N) to detect a wide vari,
ety of objects including glass, plastic, and rubber objects.
Models with digital output for B7A Units and models with 4- to,
20-mA linear output corresponding to the 0- to 5-mm measure,
ment range are available.
Models with ball-, flat-, or pin-type actuators are available for a,
wide variety of objects.
The XS3 Sensor I/O Connector makes Sensor connections simple.
