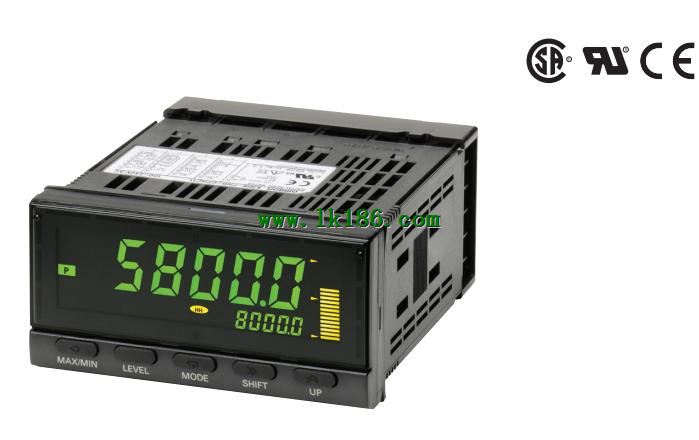

OMRON K3HB-PNB-A-DRT1 AC/DC24V Time interval table OMRON K3HB-PNB-A-DRT1 AC/DC24V

Brand: OMRON
Name: Time interval table
Model: K3HB-PNB-A-DRT1 AC/DC24V
Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (HOLD, RESET) equipped with.
External power supply DC12V80mA.
Note: K3HB-RPB-A, K3HB-RNB-A is not equipped with event input.
DeviceNet; DeviceNet:--.
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC/DC24V.
Measurement of 2 points through the speed, time, or cycle of the digital time interval table.
Action determine the color, can switch the green / Red 2 kinds of color display.
Measurement of wide range of pulse interval time.
Measuring, calculating and displaying the pulse interval between 2 points.
Pulse interval measurement range, the maximum can be measured from 10ms to 320

Count input: PNP/NPN universal DC voltage input (4.5 to 30 VDC).
Display: 7-segment LCD.
Max. revolutions displayed (applicable encoder resolution):
1000 s–1 (1 pulse/rev.), 1000 min–1 (60 pulse/rev.); Light-gray body.
Revolutions displayed up to five digits.
Dual revolution display according to encoder resolution used;
1000 s–1/1000 min–1 or 1000 OMRON K3HB-PNB-A-DRT1 AC/DC24V. 0 s–1 /1000.0 min–1,
Switchable dual revolution display type available (-NV1 models);
extended up to 10000 min–1 K3HB-PNB-A-DRT1 AC/DC24V Input type: Platinum-resistance thermometer or thermocouple.
Supply voltage: 100 to 240 VAC.
Output: 1 relay contact output (SPDT).
Highly Visible LCD Display with 2-color (Red and Green) LEDs.
Wide input range - select from two types of platinum-resistance,
thermometers and ten types of thermocouples OMRON K3HB-PNB-A-DRT1 AC/DC24V.
Front-panel key operation for easy setting.
Average processing function suppresses flicker.
Temperature input shift and temperature unit selection functions.
Easy confirmation of max/min display.
Short 80-mm depth (measured from edge of face plate).
Finger protective cover (standard equipment) protects against,
electric shock OMRON K3HB-PNB-A-DRT1 AC/DC24V.
Water- and dust-proof NEMA4X (IP66 equivalent) front panel.
Recognized to conform to U.S. and Canadian requirements under,
the Component Recognition Program of UL.
CE marking. Supply voltage: 12 to 24 VDC OMRON Time interval table.
6-digit total counter/time counter: Light gray.
DIN 72 x 36-mm Total Counter/Time Counter with.
Easy-to-read Displays and Water and Oil OMRON Time interval table.
Resistance Equivalent to IP66.
Large, easy-to-read displays: 15-mm-high characters for 6-digit mod,
els; 12-mm-high characters for 8-digit models.
High-visibility, negative transmissive LCD display with built-in red LED,
backlight at low power consumption.
IP66 with oil resistance and NEMA4 are achieved by unifying the front,
with the casing case and using oil-resistant materials and parts OMRON Time interval table.
Compaact (66 mm) body K3HB-PNB-A-DRT1 AC/DC24V.
Switch 6-digit models between total counter and time counter operation,
Just change a switch setting for either an NPN or PNP input.
Supports both external resetting and manual resetting.
Finger-pprotection terminal block cover prevents electrical shock and,
conforms to VDE0106, Part 100 OMRON K3HB-PNB-A-DRT1 AC/DC24V.
Safety standards: UL, CSA, EMC (EN 61326), CE Marking.
