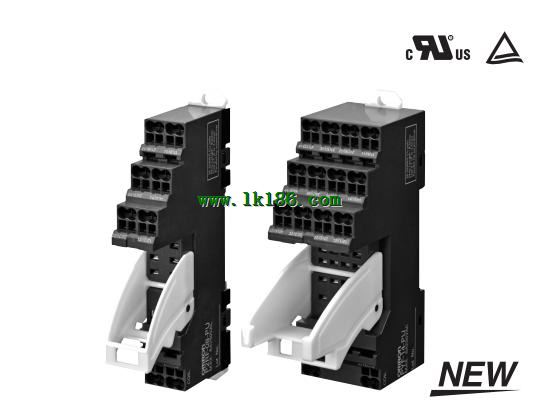

Name: Plus Push-In terminal socket
Model: PYF-14-PU-L
Socket body.
Representative examples of applicable models.
Timer: H3Y series; H3YN series; H3Y (N) -4-B.
Pole number: 4.
Socket for MY relay, G2R-S relay.
Save hours of Push-InPlus terminal type to add product series.
Using Plus Push-In terminal, compared with the previous screw terminals,
Save wiring time (compared with the previous screw terminals, can shorten the wiring time of about 60%*).
Screw will not loose, to achieve maintenance free.
The insertion force is small, the drawing strength is big, and the wiring time is saved, and the high reliability is simultaneously considered.
When connecting multiple strands, the use of non - holding mechanism,
Insert a word screwdriver to keep it.
2 wires can be inserted in each terminal.
DIN guide rail installation, screw mounting common.
