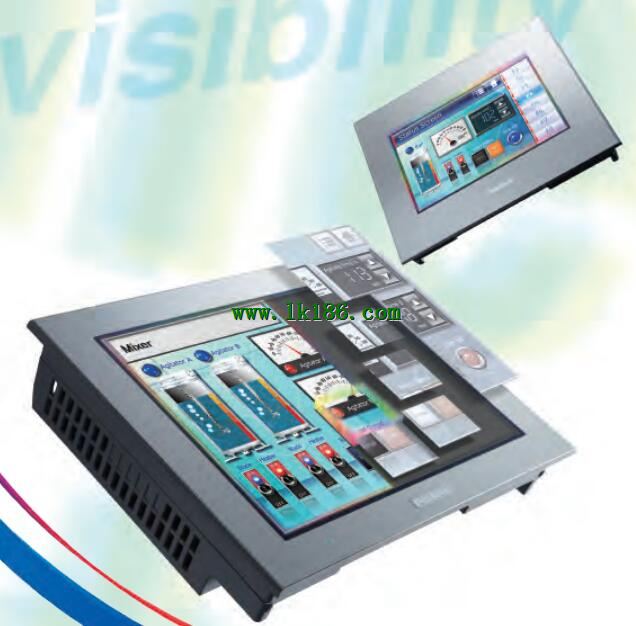

PFXGP4501TAAC Proface PFXGP4501TAAC 104 inch man machine interface

The built-in CF interface, the production data management and maintenance more smooth and simple picture.
Screen size: 10.4 inches.
Power supply voltage: AC220V.
Display type: STN pseudo color LCD.
Resolution: 640 x 480 pixels.
Display color: 64 color.
Internal memory: FEPROM 2MB.
Backup memory: SRAM 128KB Proface PFXGP4501TAAC.
Simple arrangement of components and markers to select 1200 of the available styles can be quickly and easily create the screen PFXGP4501TAAC
Touch input unit, start input mode.
Increase the number of times, the cumulative time and alarm level message.
Alarm sort function (according to the date, the number of times, etc.).
Increase in the number of clocks, from the previous 3 to 8.
Different colors represent different levels of information Proface PFXGP4501TAAC.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need Proface PFXGP4501TAAC.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen Proface 10.4 inch man machine interface.
Using Tags can make the picture editing more flexible.
Up to 3 windows can be displayed at the same time (in which 2 Tag U window) Proface 10.4 inch man machine interface.
Display history alarm data.
Production site data or data can be collected through the Pro-Server immediately to PC a variety of applications.
Automatic acquisition of production data and can improve the quality and productivity Proface 10.4 inch man machine interface.
Touch panel operation is easier to set.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient of 8, 2, 4 and 1,
And zoom in between 1 and 8.
This allows you to precisely adjust the font size to suit your layout. "Specifications: DC24/S (standard) class models.
Display type: TFT color LCD (high brightness and low reflection).
Display size: 5.7 inches.
Resolution: 320 x 240 pixels (QVGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Touch panel type: resistance type (analog).
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time. Data transmission using USB memory.
In the production site using USB memory can be easily transferred to the production line change and change the screen data.
Easily upgrade.
GP/ST series supports GP series of all models of the screen data, including the first generation of the GP10 series.
GP product family to maintain the size of the opening of the panel compatibility, to facilitate easy replacement.
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Providing operation and maintenance instructions through video mode, which can save maintenance cost.
The operation and maintenance instructions provided by the video mode can make any operator easy to master the operation method.
Remote operation and monitoring in the Office
In the office or other remote side can monitor the production site of the GP screen.
Without picture editing or programming, you can achieve real-time management and monitoring, and now, you can also provide more efficient remote maintenance control.
Error visualization.
The controller is directly connected to the GP, and the key error information of the controller can be displayed on the GP by using the sample unit.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
No need to open the control panel, through the PLC to monitor the GP program.
Through thee data through the GP function, you can easily debug the ladder program and adjust the data due to changes in the production line by GP easily PFXGP4501TAAC.
Use USB memory or CF card backup monthly and daily
Recording function using USB memmory or CF card can easily improve the efficiency of daily and monthly Proface PFXGP4501TAAC.
The use of CSV data conversion function can be modified on the PLC GP settings.
