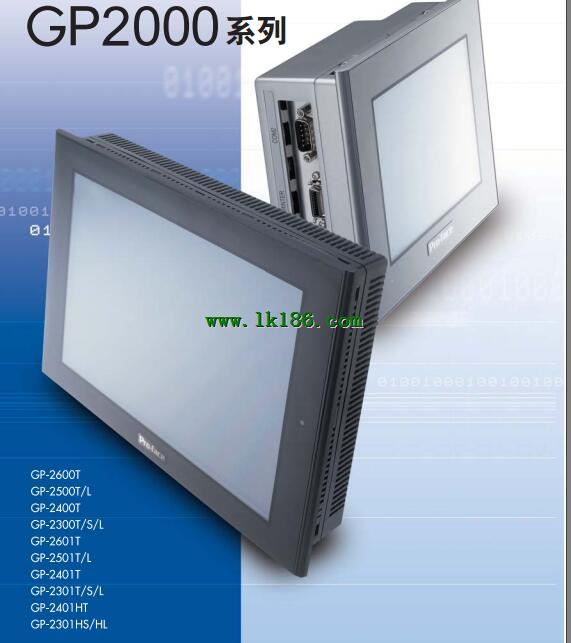

>> Proface GP2300-TC41-24V(GP-2300T, PFXGP2300TD) Display type: TFT color LCD Proface GP2300-TC41-24V(GP-2300T, PFXGP2300TD)
Proface GP2300-TC41-24V(GP-2300T, PFXGP2300TD) Display type: TFT color LCD Proface GP2300-TC41-24V(GP-2300T, PFXGP2300TD)
Brand:
Proface
Name: Touch screen
Model: GP2300-TC41-24V(GP-2300T, PFXGP2300TD)
Screen size: 5.7 inches.
Display type: TFT color LCD.
Resolution: 320 x 240 pixels.
Display color: 256 color.
Internal memory: FEPROM 2MB.
Backup memory: SRAM 256KB.
Interface: CF card, Ethernet, serial port expansion.
Touch input unit, start input mode.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
Using Tags can make the picture editing more flexible.
Up to 3 windows can be displayed at the same time (in which 2 Tag U window).
Display history alarm data.
Touch panel operation is easier to set.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient of 8, 2, 4 and 1,
And zoom in between 1 and 8.
This allows you to precisely adjust the font size to suit your layout.
Simple arrangement of components and markers to select 1200 of the available styles can be quickly and easily create the screen.
...More relevant models >>>>
Name: Touch screen
Model: GP2300-TC41-24V(GP-2300T, PFXGP2300TD)
Screen size: 5.7 inches.
Display type: TFT color LCD.
Resolution: 320 x 240 pixels.
Display color: 256 color.
Internal memory: FEPROM 2MB.
Backup memory: SRAM 256KB.
Interface: CF card, Ethernet, serial port expansion.
Touch input unit, start input mode.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
Using Tags can make the picture editing more flexible.
Up to 3 windows can be displayed at the same time (in which 2 Tag U window).
Display history alarm data.
Touch panel operation is easier to set.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient of 8, 2, 4 and 1,
And zoom in between 1 and 8.
This allows you to precisely adjust the font size to suit your layout.
Simple arrangement of components and markers to select 1200 of the available styles can be quickly and easily create the screen.
Screen size: 12.1 inches.
Display type: TFT color LCD.
Display color: 256 color (no flash) /64 color (3 speed flicker).
Backlight: CCFL (service life: more than 50000 hours, 24 hours of continuous work) GP-2300T.
Resolution: 800 x 600 pixels.
Brightness control: 4 level adjustment can be carried out by touch panel.
Voltage: AC220V.
Internal memory: FLASH EPROM 4MB.
Backup memory: 256KB SRAM.
Interface: Ethernet, CF card GP2300-TC41-24V(GP-2300T, PFXGP2300TD) Input points: 16 points (NPN/PNP type).
Rated input voltage: DC42V.
Rated input current: 7mA/DC24V.
Output points: 8 point relay output.
Public end design: 8 point /2 public end. Input points: 4 point relay (NPN/PNP type) GP-2300T.
Rated input voltage: DC42V.
Rated input current: 7.3mA/DC24V.
Output points: 4 point relay output.
Public end design: 4 point /1 public end. Input voltage: DC24V.
Screen size: 5.7 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels) GP-2300T.
Touch panel type: analog resistance.
Memory: 16MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes PFXGP2300TD.
Alarm analysis function block: yes.
Panel opening size:
Wide 118.5 x high 92.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Serial isolation models: there.
Simplify troubleshooting.
Using alarm analysis function, can grasp the cause of the fault in time.
Just a few clicks, you can set the alarm analysis screen,
Analysis of the status data of the register related to the alarm PFXGP2300TD.
Remote monitoring and control.
Using remote monitoring software EX GP-Viewer,
Can be from a running PC system Windows remote monitoring of the production scene of the man-machine interface screen PFXGP2300TD. Controller DIO (PNP model):6 point type NPN input, 2 point NPN type output, connector: 12 pin.
Specification: DC24/C (control) level models.
Display type: STN pseudo color LCD.
Display size: 10.4 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 4096 color Proface GP2300-TC41-24V.
Backlight: cold cathode lamp (replaceable).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Touch panel type: resistance type (analog).
Easily upgrade.
GP/ST series supports GP series of all models of the screen data, including the first generation of the GP10 series.
GP product family to maintain the size of the opening of the panel compatibility, to facilitate easy replacement.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Record machine status to diagnose error causes.
GP3000 series of M (Multimedia) level models of the event recording function can be recorded in the operation of the device,
This will help save and analyze the error log GP2300-TC41-24V.
Rich sample images can reduce programming time.
Pro--face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time Proface GP2300-TC41-24V.
Display type: TFT color LCD.
Display color: 256 color (no flash) /64 color (3 speed flicker).
Backlight: CCFL (service life: more than 50000 hours, 24 hours of continuous work) GP-2300T.
Resolution: 800 x 600 pixels.
Brightness control: 4 level adjustment can be carried out by touch panel.
Voltage: AC220V.
Internal memory: FLASH EPROM 4MB.
Backup memory: 256KB SRAM.
Interface: Ethernet, CF card GP2300-TC41-24V(GP-2300T, PFXGP2300TD) Input points: 16 points (NPN/PNP type).
Rated input voltage: DC42V.
Rated input current: 7mA/DC24V.
Output points: 8 point relay output.
Public end design: 8 point /2 public end. Input points: 4 point relay (NPN/PNP type) GP-2300T.
Rated input voltage: DC42V.
Rated input current: 7.3mA/DC24V.
Output points: 4 point relay output.
Public end design: 4 point /1 public end. Input voltage: DC24V.
Screen size: 5.7 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels) GP-2300T.
Touch panel type: analog resistance.
Memory: 16MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes PFXGP2300TD.
Alarm analysis function block: yes.
Panel opening size:
Wide 118.5 x high 92.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Serial isolation models: there.
Simplify troubleshooting.
Using alarm analysis function, can grasp the cause of the fault in time.
Just a few clicks, you can set the alarm analysis screen,
Analysis of the status data of the register related to the alarm PFXGP2300TD.
Remote monitoring and control.
Using remote monitoring software EX GP-Viewer,
Can be from a running PC system Windows remote monitoring of the production scene of the man-machine interface screen PFXGP2300TD. Controller DIO (PNP model):6 point type NPN input, 2 point NPN type output, connector: 12 pin.
Specification: DC24/C (control) level models.
Display type: STN pseudo color LCD.
Display size: 10.4 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 4096 color Proface GP2300-TC41-24V.
Backlight: cold cathode lamp (replaceable).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Touch panel type: resistance type (analog).
Easily upgrade.
GP/ST series supports GP series of all models of the screen data, including the first generation of the GP10 series.
GP product family to maintain the size of the opening of the panel compatibility, to facilitate easy replacement.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Record machine status to diagnose error causes.
GP3000 series of M (Multimedia) level models of the event recording function can be recorded in the operation of the device,
This will help save and analyze the error log GP2300-TC41-24V.
Rich sample images can reduce programming time.
Pro--face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time Proface GP2300-TC41-24V.
