>> Q62DA-FG Input (resolution): 0~4000 -4000~4000 0~12000 -12000~12000 -16000~16000 MITSUBISHI Q62DA-FG Voltage / current output analog module

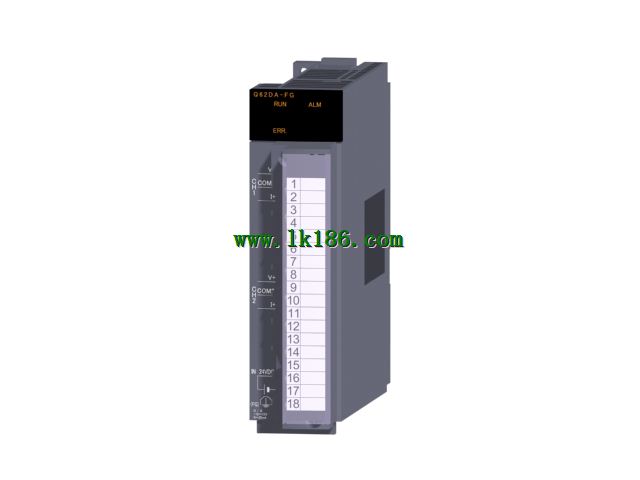

Q62DA-FG Input (resolution): 0~4000 -4000~4000 0~12000 -12000~12000 -16000~16000 MITSUBISHI Q62DA-FG Voltage / current output analog module
Brand:
MITSUBISHI
Name: Voltage / current output analog module
Model: Q62DA-FG
Output: 2 channels.
Input (resolution): 0~12000; -12000~12000; 0~12000; -16000~16000.
Output DC0~20mA; DC-12~12V.
Conversion speed: 10ms/1 channel.
18 point terminal station.
Isolation between channels.
The possibility of expanding control with intelligent function.
At the same time, the channel isolation analog module realizes high isolation voltage,
Further improve the accuracy of the benchmark.
Provide support for process control using a general purpose programmable controller.
Flow meter, pressure meter, other sensors can be directly connected to analog input,
Control valve can also be directly connected to analog output.
Hardware and installation costs have been greatly reduced due to the need for an external isolation amplifier.
High insulation strength.
Can isolate electrical interference, such as current and noise, etc..
Standard analog input module.
Isolated analog input module.
No external isolation amplifier required.
Without the use of inter channel isolation analog modules.
Using the inter channel isolation analog module.
