>> QD64D2 4Mpps compatible high speed counter module 40 pin connector MITSUBISHI QD64D2

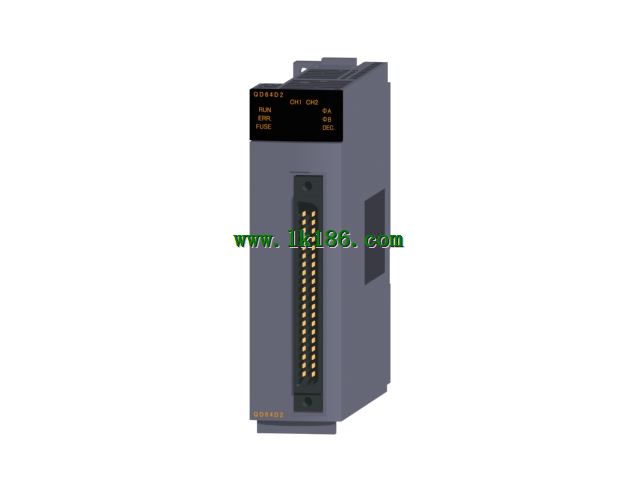

QD64D2 4Mpps compatible high speed counter module 40 pin connector MITSUBISHI QD64D2
Brand:
MITSUBISHI
Name: 4Mpps compatible high speed counter module
Model: QD64D2
Input: 2 channels.
4Mpps.
Counter input signal: EIA standard RS-422-A (differential linear drive).
External input: DC24V.
Uniform output: Transistor (drain type).
DC12/24V.
0.5A/ point.
2A/ common end.
40 pin connector.
Support high resolution devices. Pulse input and high speed counter module product group satisfying high speed and high precision control application.
High speed counter module for counting high-speed pulse train.
Can be used in combination with the external encoder for positioning and other control.
The maximum count rate can be switched, and the low frequency pulse is counted from the high speed pulse to the rising edge / falling edge.
Each 1 channel is equipped with 2 points of external uniform output.
Can be selected according to the use of "consistent output function", "continuous comparison function", to achieve high-speed control of external equipment. (QD64D2)
Provides a variety of functions, such as the same output test function (using a continuous comparison function), the default function, the latch counter function,
In order to meet the needs of various applications. (QD64D2)
The maximum count rate of the input pulse can be up to 8Mpps (differential input, 2 phase, 4 double frequency).
Can be in the semiconductor, liquid crystal manufacturing and other high position accuracy requirements of the equipment,
Perform accurate position tracking using high resolution encoders. (QD65PD2)
