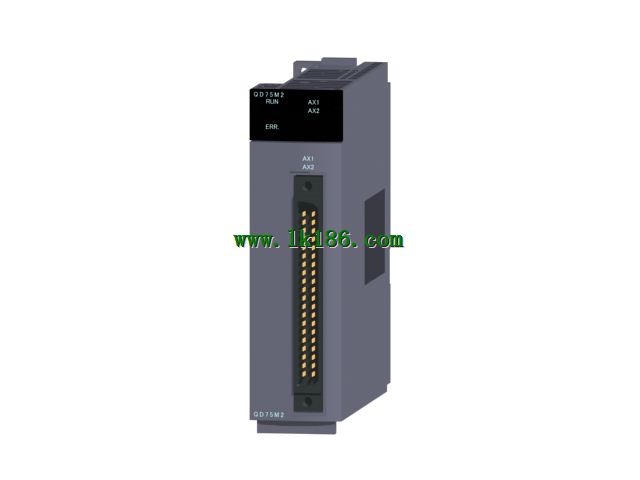

>> QD75M2 MITSUBISHI Corresponding SSCNET positioning module MITSUBISHI QD75M2
QD75M2 MITSUBISHI Corresponding SSCNET positioning module MITSUBISHI QD75M2
Brand:
MITSUBISHI
Name: Corresponding SSCNET positioning module
Model: QD75M2
"2 axes, SSCNET connection type.
2 axis linear interpolation.
2 axis interpolation.
Control unit: mm, inch, degree, pulse.
Location data: 600 data / axis.
40 pin connector.
Easy to achieve high speed, high precision positioning control.
Support for multiple types of positioning control,
Including 2 ~ 4 axis 2 axis linear interpolation, circular interpolation, speed control and speed / position control, path switching control, constant speed control etc..
In addition, can use the "Configurator-QP GX" and other software,
Easy to set, monitor and debug.
Saving wiring through SSCNET cable connections while simultaneously,
The length of the total cable distance up to 30m.
In addition, an absolute position system for determining the origin position is supported by the return data set operation of the origin.
No need for the near point block, such as wiring. "
