>> QJ71GP21-SX MITSUBISHI QJ71GP21-SX ID controller M-688-001/002 BIS can be installed directly to the Q series of substrates,
QJ71GP21-SX MITSUBISHI QJ71GP21-SX ID controller M-688-001/002 BIS can be installed directly to the Q series of substrates,
Brand:
MITSUBISHI

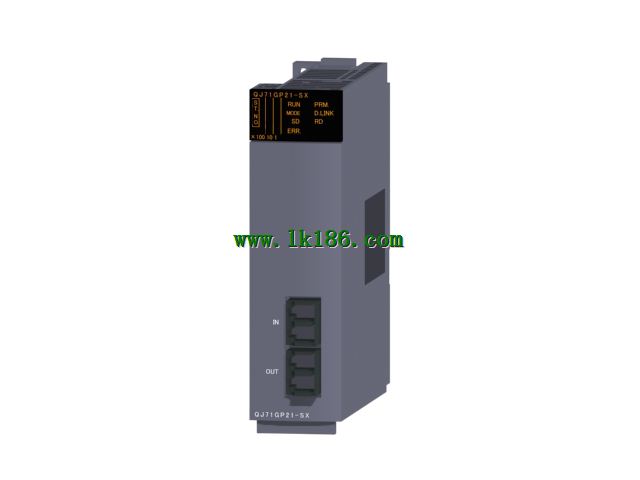

Name: IE CC-Link controller network module
Model: QJ71GP21-SX
Multimode fiber optic cable.
Double circuit.
Controller network (control station / common station).
Decentralized control of large scale controller,
IE CC-Link controller network module connected with various field network.
Effectively using Ethernet cable and connector on the market, can reduce the cost.
The performance of the cycle data update is improved.
The transmission delay time is shortened, and the synchronous waiting time of the application can be shortened.
On the same network to achieve the 256KB network shared memory (cycle data).
No need to distinguish the network can handle large capacity data.
QJ71GP21S-SX, CC-Link can be used as the control station of IE QJ71GP21-SX controller network, common station.
