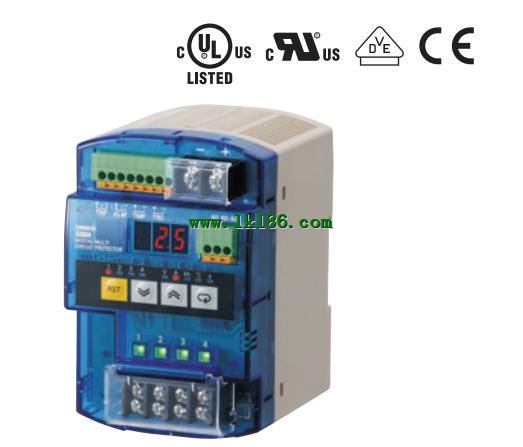

>> S8M-CP04 Connects to an S8TS Power Supply via an S8T-BUS03 Bus Line Connector OMRON S8M-CP04
S8M-CP04 Connects to an S8TS Power Supply via an S8T-BUS03 Bus Line Connector OMRON S8M-CP04
Brand:
OMRON
Name: Digital Multicircuit Protector
Model: S8M-CP04
Communications: None.
UL Class 2 output: Not compliant.
Complete Flexible DC Circuit Protector That.
Has a Wide Array of Displays, Alarm,
Outputs, and Other Digital Functions.
Four circuit protectors in one package.
Simple setting of current tripping values for each branch outputs,
in 0.1-A units.
Startup and shutdown sequence control.
Display and alarm functions (Input voltage, output current,
run time, and over-temperature),
Outputs conform to UL Class 2 (at 24 VDC, S8M-CP04-RS only),
DIN Rail mounting.
RoHs-compliant.
Free Support Tool available.
...More relevant models >>>>
Name: Digital Multicircuit Protector
Model: S8M-CP04
Communications: None.
UL Class 2 output: Not compliant.
Complete Flexible DC Circuit Protector That.
Has a Wide Array of Displays, Alarm,
Outputs, and Other Digital Functions.
Four circuit protectors in one package.
Simple setting of current tripping values for each branch outputs,
in 0.1-A units.
Startup and shutdown sequence control.
Display and alarm functions (Input voltage, output current,
run time, and over-temperature),
Outputs conform to UL Class 2 (at 24 VDC, S8M-CP04-RS only),
DIN Rail mounting.
RoHs-compliant.
Free Support Tool available.
