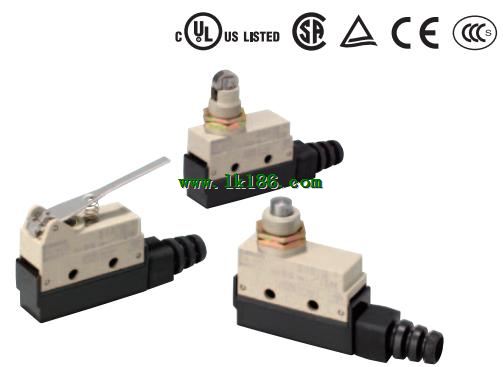

SHL-Q2255 Approved by EN, UL, CSA, and CCC (Chinese standard) OMRON SHL-Q2255 Enclosed Switch
Brand:
OMRON
Name: Enclosed Switch
Model: SHL-Q2255
Actuator: Panel mount roller plunger.
Type: Standard.
Compact, General-purpose Horizontal.
Switches.
Models for Microloads Added to Series.
Approved by EN, UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for information on approved models.),
Incorporates a switch with a durable coil spring in a tough,
high precision case.
Compact and uses a single basic switch for applications where,
strength is required.
Models for microloads and models with operation indicators,
added to series.
Terminal protective cover can be switched to wire cable from,
either the left or right.
Sealing characteristics that meet IEC IP67 degree of protection.
