>> XG4U-1404 flat cable connector OMRON XG4U-1404

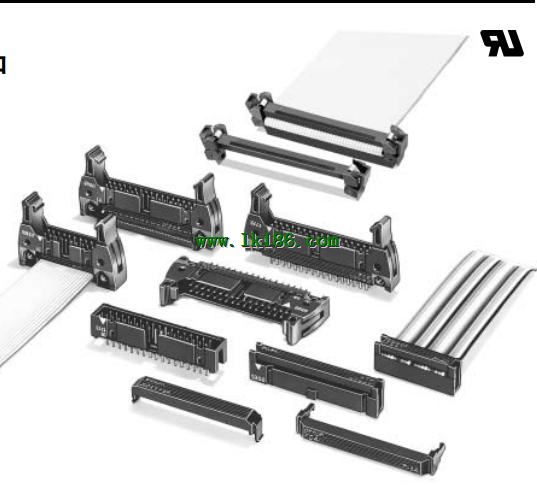

XG4U-1404 flat cable connector OMRON XG4U-1404
Brand:
OMRON
Name: flat cable connector
Model: XG4U-1404
Shape: tension release (with lock).
Pole number: 14.
Pole pole number: 1.
Minimum packing unit: 200.
Printed board connector core, MIL specification standard.
Through the use of new productivity design, high reliability and low price synchronization.
A box type plug (XG4C) which is convenient for saving space is provided in the province.
A press type plug (XG4E) capable of using the relay is provided.
Will be the company''s loose wire connector (XG5) - specific plug (XG8) and PCB type.
(XG2) combined use of various types of packaging can be achieved.
Suitable for the company''s own development of a simple locking lever can make the unique plug (XG8) and,
Box type plugs (XG4C) can also be locked.
MIL specification (MIL-C-83503) standard.
Standard product conforms to the UL specification (No. E103202 File) certified products.
...More relevant models >>>>
