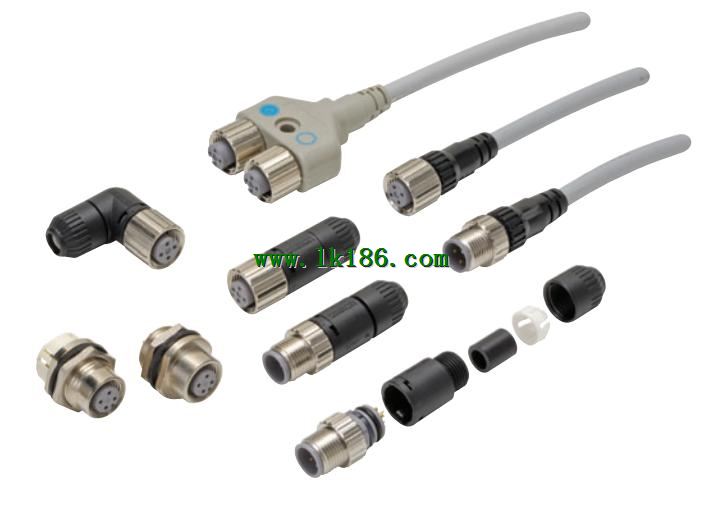

>> XS2F-H421-J90-F OMRON XS2F-H421-J90-F Single side socket connector
XS2F-H421-J90-F OMRON XS2F-H421-J90-F Single side socket connector
Brand:
OMRON
Name: Single side socket connector
Model: XS2F-H421-J90-F
Cable core number: 4.
Cable lead direction: straight line type.
Cable length: 10m.
Save time, save maintenance cost,
With a waterproof connector environment and strong tolerance of FA.
For IP67, the FA 94V-0 connector small special flammability.
The wiring system makes the device more maintainable connector,
And reduce the downtime of equipment.
Introduction of connector and modular connector with cable.
A modular connector crimping type, welding type, screw connection type 3.
With the cable connector is obtained UL certification of products.
According to IEC61076-2-101 (IEC60947-5-2), NECA4202.
