>> ZUV-L4H OMRON ZUV-L4H

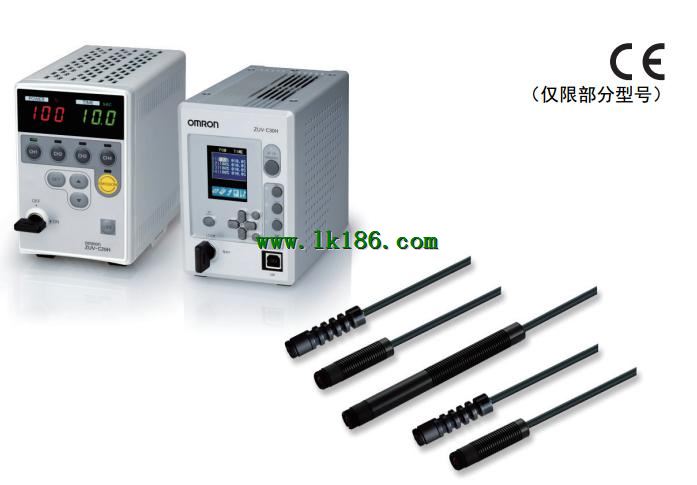

ZUV-L4H OMRON ZUV-L4H
Brand:
OMRON
Name: Smart Curing System
Model: ZUV-L4H
Type: Spot lens.
Spot: Spot dia.: 4 mm.
Cost Revolution Led by UV Curing.
System.
Minimal heat damage thanks to UV-LED irradiation.
New UV LEDs with much higher brightness mounted in heads.
Greater irradiation power to reduce bonding tact time.
Usage of LEDs that have a long lifetime of 40,000,
hours* drastically reduces running costs.
Ultra compact body that is approximately 1/8th the size,
of a conventional lamp system.
Equipped with a color LCD that makes settings simple and reliable.
