PFXZGMCNDC1 Proface PFXZGMCNDC1

"Module type compact.
Input voltage: DC24V.
Screen size: 5.7 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels).
Touch panel type: analog resistance.
Memory: 8MB (internal memory), nvSRAM128KB (non-volatile, no battery).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface PFXZGMCNDC1.
SD card slot (max 32GB): No.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 PFXZGMCNDC1
Replaceable battery: no (rechargeable battery).
Alarm analysis function block: No.
Coating models: none.
The use of drag and drop operations, can be easily shared between the man-machine interface and the control program of the symbolic register data,
Make the programming process intuitive and efficient Proface PFXZGMCNDC1.
In addition, the common and special control function is defined as the function block, which simplifies the design of the control system.
The man-machine interface picture is directly connected with the control program, which can realize the efficient programming.

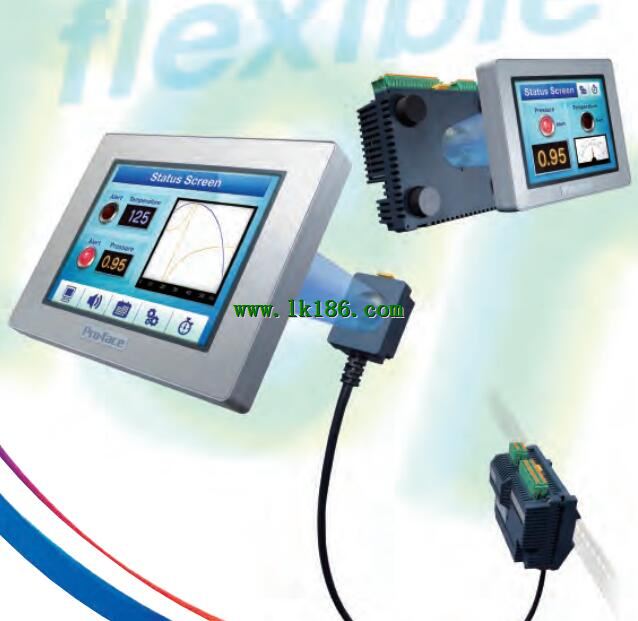

6 Display Module 2 host module, can realize the 12 kinds of "intelligent platform" Proface PFXZGMCNDC1.
Modular design, display module and the host module can be split,
Therefore can be replaced respectively .
Display module and host module free combination, function and size of flexible. "The built-in CF interface, the production data management and maintenance more smooth and simple picture.
Screen size: 12.1 inches.
Power supply voltage: AC220V.
Display type: TFT color LCD.
Resolution: 800 x 600 pixels.
Display color: 256 color.
Internal memory: FEPROM 4MB.
Backup memory: SRAM 128KB.
Production site data or data can be collected through the Pro-Server immediately to PC a variety of applications.
Automatic acquisition of production data and can improve the quality and productivity.
Touch panel operation is easier to set.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient of 8, 2, 4 and 1,
And zoom in between 1 and 8.
This allows you to precisely adjust the font size to suit your layout.
Simple arrangement of components and markers to select 1200 of the available styles can be quickly and easily create the screen.
Touch input unit, start input mode.
Increase the number of times, the cumulative time and alarm level message.
Alarm sort function (according to the date, the number of times, etc.).
Increase in the number of clocks, from the previous 3 to 8.
Different colors represent different levels of information.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,

Pull the parts into the edit screen to quickly and easily configure the components you need PFXZGMCNDC1.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
Using Tagss ccan make the picture editing more flexible PFXZGMCNDC1.
Up to 3 windows can be displayed at the same time (in which 2 Tag U window).
Display history alarm data. "
