Proface EXM-DDI16DT EXM-DDI16DT

Connector for connecting DC power cord (5 / set).5.7 inches, GP installed to the hard panel to provide dust and moisture proof function.COM2 adapter for converting the COM2 interface to the RS-422 terminal blockType: there is an emergency stop switch (red), no key switch.
Display type: TFT color LCD Proface EXM-DDI16DT.
Display size: 5.7 inch.
Display color: 65536 color (no flicker), 16384 color (flashing).
Resolution (pixel) x:640 480 (VGA) EXM-DDI16DT
Memory: 32MB.
Data backup: 320KB SRAM.
Emergency stop switch provides 3 colors of red, yellow and grey.
3 position enable switch with forced contact disconnect function.
Key switch without pressing the emergency stop switch can also be mobile devices Proface EXM-DDI16DT.
Very light.
The high visibility of the configuration of the 65536 color TFT color LCD .
High definition and wide viewing angle to bring excellent visual effects.
Easily replace GP3000H series.7.5 inches thin film used for surface protection of man-machine interface from fingerprints, water droplets, dust and oil pollution (5 / set).Size: 10 Proface EXM-DDI16DT. 4 inches.
Display type: TFT color LCD.
Resolution: 640 x 480 pixels (VGA).
Display color: 256 color (no flicker) /64 color (flashing) .
Power supply: DC24V.
Interface: USB (host), CF card, RS-232C, RS-422/485.
Backlight: cold cathode fluorescent lamp replacement: return to repair.
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
The same software supports all 3000 series of Pro-face man-machine interface.
From the screen to create the programming, the functions are simple and easy to use.
Learn a software, master all the skills.
Support efficient image creation.
ID management and operation log reduces downtime.
Improve the operation mode, reduce the cost and workload.
Analysis of failure causes according to the operation log.
Check register status on historical trend chart. PNP output type.
Display size: 5.7 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: No.
USB (host):1.
USB (device): none.
Built in DIO input: 16 points.
Built in DIO output: 16 points.
Built in AIO input: No.
Built in AIO output: No.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input, pulse output, PWM output.
Special DIO: No.
Expansion module EX module: up to 3.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment.
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far as possible not to the scene on the recovery of the machine running.
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy to use system design.
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
Use EX GP-Pro to easily test and debug the project.
EX GP-Pro simulation is a kind of offline simulation function, with the help of this function,
No need to connect the man-machine interface, you can test the operation of the screen and the logic program.

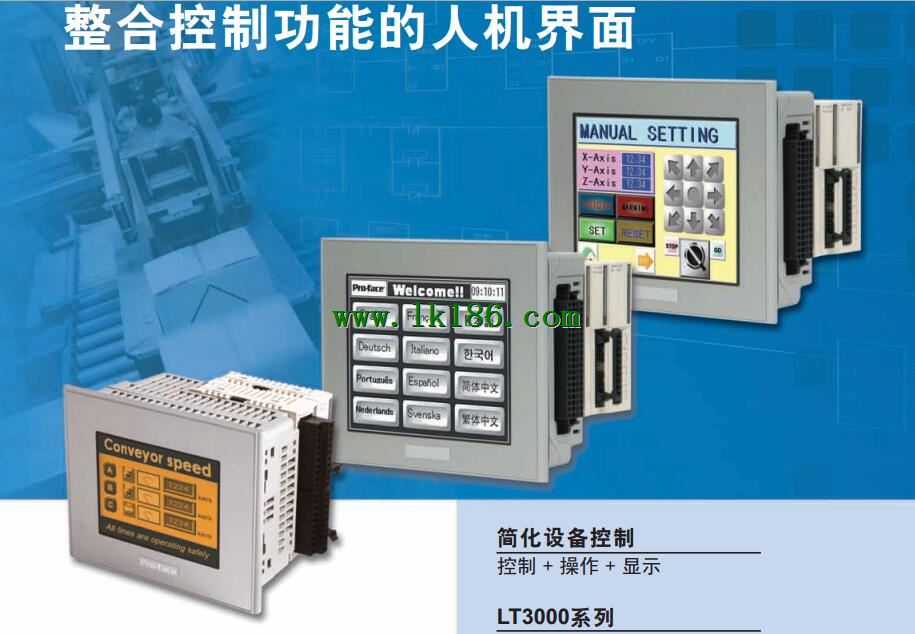

Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
Using remote monitoring software GP-Viewer or data acquisition software EX Pro-Server,
Can easily monitor thhe production sccene of the man-machine interface screen, or release production orders and real-time data collection EXM-DDI16DT.
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the disspllay module is installed in other locations EXM-DDI16DT.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
EXM-DDI16DT Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=EXM-DDI16DT&select=5
