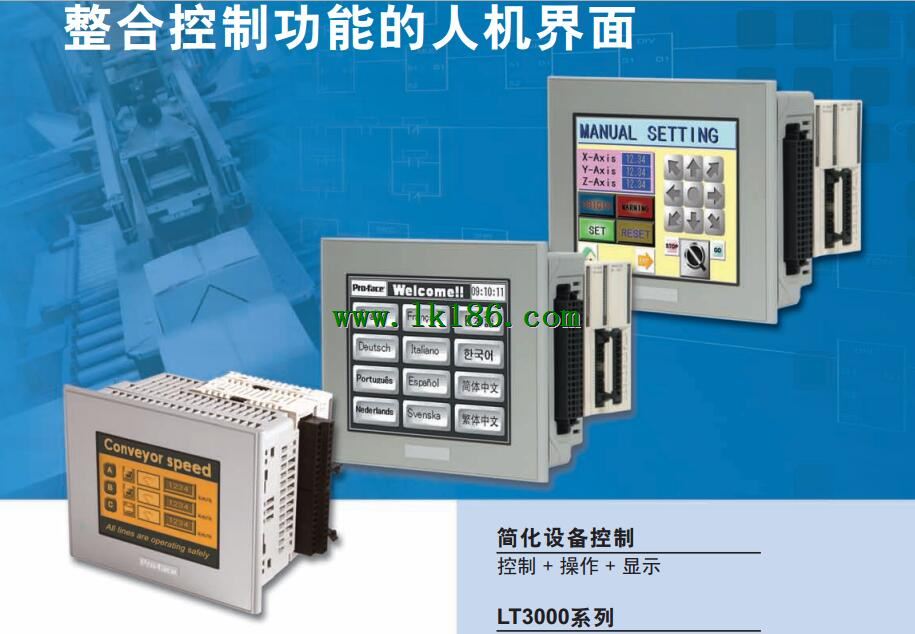

Proface EXM-ALM3LT EXM-ALM3LT

DIO model /NPN output type.
Display size: 5.7 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 20 points.
Built in DIO output: 10 points.
Built in AIO input: No.
Built in AIO output: No Proface EXM-ALM3LT.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input EXM-ALM3LT
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps) Proface EXM-ALM3LT.
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations .
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture Proface EXM-ALM3LT.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface .
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated. Adapter for EX module (5 / set)Used to prevent disconnection. (1 interface, 5 / set)Display size: 5.7 inches.
Display type: STN pseudo color LCD.
Display color: 64 color.
Resolution: 320 x 240 pixels.
Input voltage: DC24V.
Control memory: EPROM 1MB FLASH.
Program area: 128KB.
Variable area: 32KB.
Interface: built-in DIO 32 points (16 point input /16 point output, NPN type). Display size: 4.3 inches.
Display color: TFT color LCD.
Resolution: 480 x 272 pixels (WVGA).
Display color number: 65536 color.
Backlight: LED.
Touch screen type: analog.
Storage space: 8MB.
Interface: ethernet.
Rated voltage: DC12-DC24V.
Compact body, powerful and easy to use.
Easy customization.
Picture editing software support multi language.
Easy data processing.
Using USB (A Type) interface or Ethernet interface, easy to place the data.
Meet the development needs of the Internet era of industrial development needs of the data processing functions.
In the era of Internet of things, the demand for information on the spot is also increasing.
Configuring the GP4100 series of Ethernet and USB interfaces, even if it''s small and compact, allows you to easily access all kindss of informatioon (such as alarms, recipes, and samples) EXM-ALM3LT.
Improved visualization and operability of small size human computer interface.
Resolution of 480 x 272 pixels, in a limited range of visibility can also clearly show the information.
The 655336 color display effect greatly improves the visualization and avoids the error operation caused by the low quality display of the monochromatic model EXM-ALM3LT.
EXM-ALM3LT Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=EXM-ALM3LT&select=5
