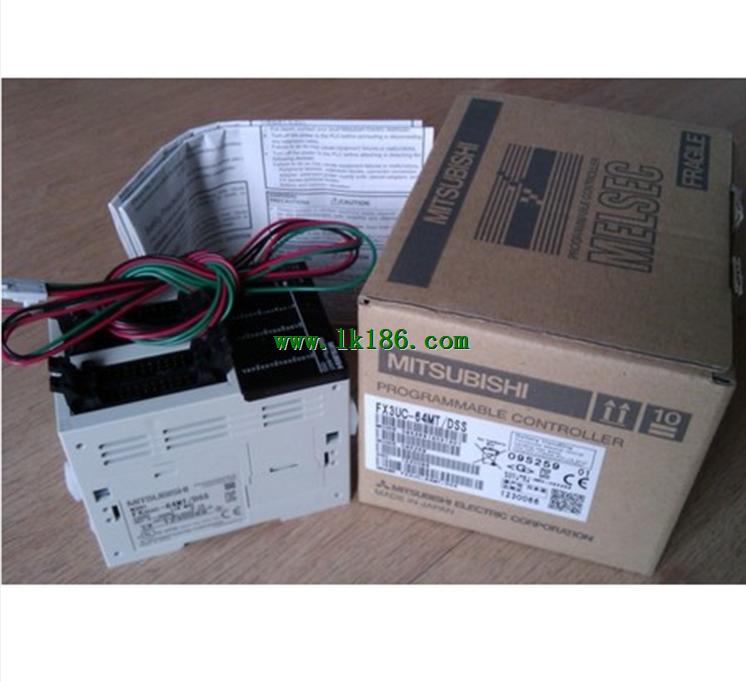

FX3UC-64MT/DSS MITSUBISHI FX3UC-64MT/DSS

Enter 32 points.
2/5mA DC12/24V.
Response time: 10ms.
32 point 1 public.
Output 32 points.
DC12/24V.
Leakage current: 0.1mA OFF.
Response time: 1ms.
32 point 1 public.
Protection function.
Surge.
40 pin connector.
Switching value, also known as logic, refers to only two values, 0 or 1, ON or OFF.
It is the most common control, it is the advantage of PLC control,
Is also the most basic application of PLC FX3UC-64MT/DSS
Switch volume control is designed to,
According to the current input combination of the switch quantity and the history of the input sequence,
So that PLC generates the corresponding switching output,
In order to make the system work in a certain order MITSUBISHI FX3UC-64MT/DSS.
So, sometimes also known as the order control .
And sequential control is divided into manual, semi-automatic or automatic.
And the control principle is decentralized, centralized and hybrid control three. Servo motor series: low inertia, medium / high power.
Rated output: 50.0kw.
Rated speed: 1500r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis) MITSUBISHI FX3UC-64MT/DSS.
Voltage: 400V level.
Features: low inertia has low medium and high speed three models, suitable for different applications as a standard, 30KW and above servo motor can be installed flange or bracket .
IP level: IP44.
Application example:
1, injection molding machine.
2, semiconductor manufacturing equipment.
3, large material handling system.
4, stamping machine.
Abundant motor product line can optimize the performance of the machine.
Has a rich motor product line including a rotary servo motor, linear servo motor and direct drive motor. Cable length: 3m.
The connection between the CC-LINK interface unit and the smart GOT.
Applicable model: HandyGOT. Motor series: medium inertia, medium capacity.
Using a serial absolute / incremental encoder.
Rated output power: 0.5kw.
Rated speed: 3000rpm.
With a brake band.
Shaft end: straight shaft.
When the AC servo motor has no control voltage, only the pulsating magnetic field generated by the excitation winding is generrated in the statorr, and the rotor is still not moving FX3UC-64MT/DSS.
When the control voltage is controlled, a rotating magnetic field is generated in the stator, and the rotor rotates in the direction of the rotating magnetic field,
In the case of constant loaad,, the speed of the motor varies with the size of the control voltage,
When the phase of the control voltage is reversed, the servo motor will reverse FX3UC-64MT/DSS.
FX3UC-64MT/DSS Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=FX3UC-64MT/DSS&select=5
