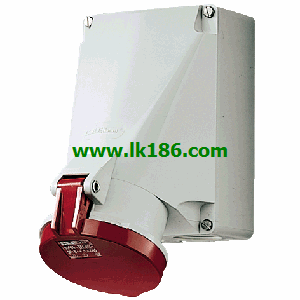

1145A MENNEKES 1145A

Product Name:Panel mounted receptacle
Part No.:3090.
Ampere:32A.
Poles:5p.
Voltage:>50-500V.
Earth position :2h.
Hertz >300-500Hz.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44 MENNEKES 1145A.
screw terminals.
flange: 75 x 75 mm 1145A
fixing hole spacing: 60 x 60 mm.
straight.
also suitable for installation in cable ducts and columns.Product Name:Wall mounted receptacle
Part No.:5108A.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard MENNEKES 1145A.
Protection type:IP44.
screw terminals.
switched.
mechanical DUO-interlock.
receptacles can be padlocked.Product Name:Cepex wall mounted receptacle
Part No.:4108.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals MENNEKES 1145A.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø.
meeting DIN 18032 standards for ball rebound.Product Name:Wall mounted receptacle
Part No MENNEKES Wall mounted receptacle. :7235.
Ampere:63A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals MENNEKES Wall mounted receptacle.
Contact: standrad.
Protection type IP44.
screw terminals.
SoftCONTACT.
switched.
mechanical DUO-interlock.
circuit breaker, K-characteristics and RCD (0.03A).
other leakage current ratings on request MENNEKES Wall mounted receptacle.
receptacles can be padlocked.Product Namee:Wall mounted receptacle with TwinCONTACT 1145A.
Part No.:1727.
Ampere:16 A.
Poles:4 p.
Voltage:>50-500V.
Earth position:2 h.
Hertz:>300-500 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminnals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°
