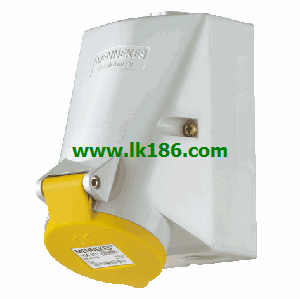

MENNEKES 3041 Wall mounted receptacle MENNEKES 3041
Brand:
Mennekes
Name: Wall mounted receptacle
Model: 3041
Product Name:Wall mounted receptacle
Part No.:3041.
Ampere:16A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.
...More relevant models >>>>
Name: Wall mounted receptacle
Model: 3041
Product Name:Wall mounted receptacle
Part No.:3041.
Ampere:16A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.
Product Name:Panel mounted receptacle
Part No.:1249A.
Ampere:63A.
Poles:4p.
Voltage:500V.
Earth position :7h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals MENNEKES 3041.
SoftCONTACT.
straight.
products with pilot contact: part no 3041 + index P.Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1797.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44 MENNEKES 3041.
screwless spring terminals.
suitable for through wiring.
straight.Product Name:Wall mounted receptacle
Part No.:7629.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type IP67 MENNEKES 3041.
screw terminals.
for horizontal installation.
switched.
mechanical DUO-interlock.
receptacles can be padlocked.Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:244.
Ampere:32A.
Poles:4p MENNEKES Wall mounted receptacle.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67 MENNEKES Wall mounted receptacle.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.Product Name:Receptacles
Part No.:3774.
Ampere:63A.
Poles:5p.
Voltage:400V MENNEKES Wall mounted receptacle.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:Screw terminals, SoftCONTACT
Contact:nickel plated coontacts, highly heat resistant contact carrier
Protection type:IP67 3041.
screw terminals.
SoftCONTACT.
highly resistant to chemicals.
highly heat resistant contact carrier.
nickel plated contacts.
internal fixing.
one cable entry at top annd two blind cable entries (can be cut out) at bottom MENNEKES 3041.
enclosure base can be turned 180°.
with 6 blind holes for mounting special terminals if required.
Part No.:1249A.
Ampere:63A.
Poles:4p.
Voltage:500V.
Earth position :7h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals MENNEKES 3041.
SoftCONTACT.
straight.
products with pilot contact: part no 3041 + index P.Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1797.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44 MENNEKES 3041.
screwless spring terminals.
suitable for through wiring.
straight.Product Name:Wall mounted receptacle
Part No.:7629.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type IP67 MENNEKES 3041.
screw terminals.
for horizontal installation.
switched.
mechanical DUO-interlock.
receptacles can be padlocked.Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:244.
Ampere:32A.
Poles:4p MENNEKES Wall mounted receptacle.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67 MENNEKES Wall mounted receptacle.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.Product Name:Receptacles
Part No.:3774.
Ampere:63A.
Poles:5p.
Voltage:400V MENNEKES Wall mounted receptacle.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:Screw terminals, SoftCONTACT
Contact:nickel plated coontacts, highly heat resistant contact carrier
Protection type:IP67 3041.
screw terminals.
SoftCONTACT.
highly resistant to chemicals.
highly heat resistant contact carrier.
nickel plated contacts.
internal fixing.
one cable entry at top annd two blind cable entries (can be cut out) at bottom MENNEKES 3041.
enclosure base can be turned 180°.
with 6 blind holes for mounting special terminals if required.
