LK Automation Limited
Home >> Products >> Mennekes >> Socket >> Surface-type Socket-outlet >> 1878 MENNEKES 1878 Voltage:400V Wall mounted receptacle with TwinCONTACT

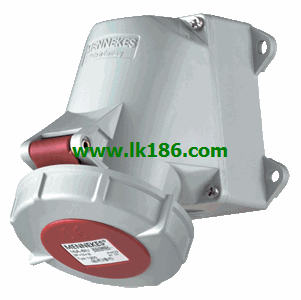

1878 MENNEKES 1878 Voltage:400V Wall mounted receptacle with TwinCONTACT

Brand: Mennekes
Name: Wall mounted receptacle with TwinCONTACT
Model: 1878
Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1878.
Ampere:32A.
Poles:3p.
Voltage:400V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.

Product Name:Wall mounted receptacle with TwinCONTACT
Part No.:1881.
Ampere:32A.
Poles:4p.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points MENNEKES 1878.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch 1878Product Name:Cepex wall mounted receptacle
Part No.:4167.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals MENNEKES 1878.
with labelling field.
with safety lock.
two keys.
cannot be dismantled when locked.
on request with identical locks.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø.Product Name:Wall mounted receptacle
Part No.:5603A.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz MENNEKES 1878.
Connection technology:screw terminals.
Contact: standard.
Protection type:IP67.
switched.
mechanical DUO-interlock.
receptacles can be padlocked.Product Name:Panel mounted receptacle
Part No.:1500.
Ampere:32A.
Poles:5p MENNEKES Wall mounted receptacle with TwinCONTACT.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screw terminals MENNEKES Wall mounted receptacle with TwinCONTACT.
Contact: standrad.
Protection type IP44.
screw terminals.
suitable for through wiring.
20° inclination.
receptacles optional fitted with auxiliary contact.Product Name:Wall mounted receptacle
Part No MENNEKES Wall mounted receptacle with TwinCONTACT. :1424.
Ampere:32A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:418.
Ampere:16 A.
Poles:4 pp 1878.
Voltage:400V.
Earth position:6 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals.
suitable for through wiring.
internal fixing.
one cable entry at toop and two blind entries (can be cut out) at bottom MENNEKES 1878.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.
