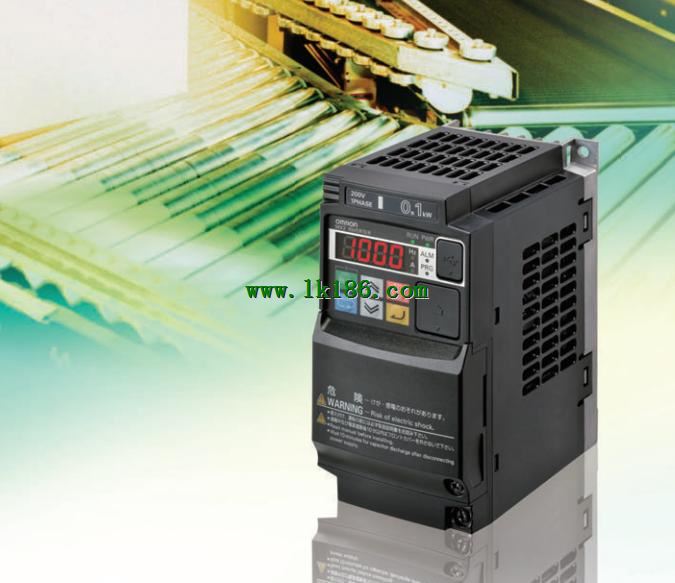

3G3MX2-AB001-ZV1 OMRON 3G3MX2-AB001-ZV1 Multi function small frequency converter

OMRON Multi function small frequency converter3G3MX2-AB001-ZV1

3G3MX2-AB001-ZV1 Introduce | 3G3MX2-AB001-ZV1 Catalog/Manual/Instructions/Software download

Brand: OMRON
Name: Multi function small frequency converter
Model: 3G3MX2-AB001-ZV1
Function name: single phase 200V.
Power: 0.1KW.
Rated output voltage: 3 phase, 200 ~ 240V (the output voltage can not exceed the input voltage).
Built in brake unit (brake resistance needs to be matched).
Weight: 1.0KG.
Dimension (w * h) 128mm *:68.
Outline dimension (deep):109mm.
Mechanical automation concept.
Positioning function.
The use of options.
(EtherCAT, CompoNet and DeviceNet) to realize the field bus communication.
Driver programming function.
Current vector control.
High starting torque: 0.5Hz up to 200%.
Safety features, in compliance with ISO13849-1:2008 EN (Cat.3/PLd) and IEC60204-1 stop level 0 standard.
Frequency output up to 580H.

Function name: 3 phase 200V.
Power: 1.5KW.
Maximum output voltage: three phase 200 ~ 240VAC (corresponding input voltage).
Rated voltage, frequency: three-phase power supply 200 ~ 50/60Hz, 240V.
Cooling: forced cooling.
Weight: 1.2kg.
Simple but not simple, casual and not casual.
Homogenization of today, the quality of the subtle show OMRON 3G3MX2-AB001-ZV1.
Standard configuration has RS485 interface, Modbus bus communication function 3G3MX2-AB001-ZV1
3Hz provides more than 150% torque output.
2-15kHz carrier frequency, can achieve mute driver.
Equipped with simple energy saving function.
Compact size and uniform, and can be installed close to the side by side.
Signal output function for controlling external brake action.
Software setting operation mode, no need to connect the control line can be used for speed control OMRON 3G3MX2-AB001-ZV1. Specification: three phase 400V.
Power: 2.2KW.
Maximum output voltage: three phase AC380 ~ 480V (input voltage correspondence).
Rated voltage: three phase 480V ~ 50/60Hz AC380.
Weight: about 4kg.
In the inverter is equipped with the servo can play the same static torque with PG vector control function,
DeviceNet communication makes the application field more extensive OMRON 3G3MX2-AB001-ZV1.
The high functional specifications are concentrated in the compact.
Equipped with PG vector control.
Subsequent models of 3G3RV.
CV/VT selection function.
Rich online automatic adjustment function (self learning function).
CX-Drive software OMRON Multi function small frequency converter.
DeviceNet correspondence correspondence.
Multi function input and output function.
Colorful function OMRON Multi function small frequency converter.
Brake transistor built-in.
Protection function. Box protection class: plastic, IP00.
Terminal size: M4.
Line diameter: 2 square mm, 3.5 square mm.
Weight: 0.7kg.
Used to reduce the noise from the power cord to the frequency converter or from the frequency converter to the power line.
Try to be close to the transducer for connection OMRON Multi function small frequency converter. Box protecttion class: metal, IP00 3G3MX2-AB001-ZV1.
Terminal size: M8.
Line diameter: 30 square mm.
Weight: 4.6kg.
Used to reduce the noise from the power cord to the frequency converter or from the frequency converter to the power line.
Try to be closee to the transducer for connection OMRON 3G3MX2-AB001-ZV1. Used to set parameters, perform various monitoring tasks, and implement the start / stop operation of the converter.
