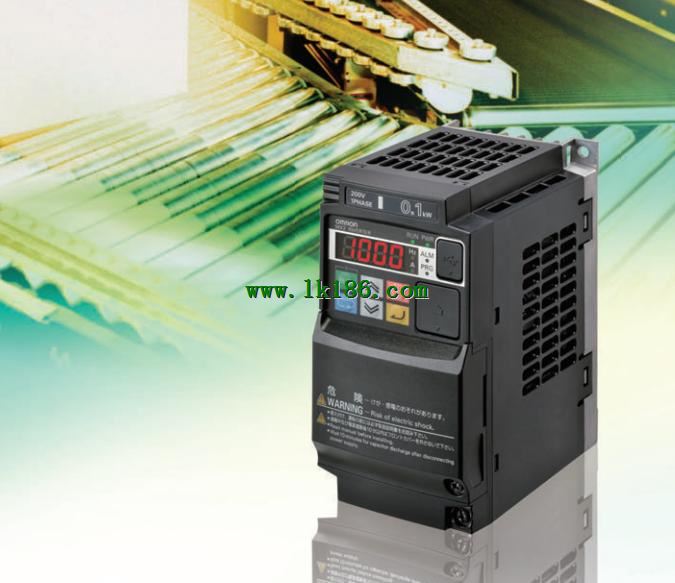

3G3MX2-AB007-ZV1 OMRON Multi function small frequency converter OMRON 3G3MX2-AB007-ZV1

Function name: 3 phase 400V.
Power: 0.75KW.
Rated output voltage: 3 phase, 380 ~ 480V (the output voltage can not exceed the input voltage).
Built in brake unit (brake resistance needs to be matched).
Weight: 1.6KG.
Dimension (w * h) 128mm *:108.
Outline dimension (deep):170.5mm.
Mechanical automation concept OMRON 3G3MX2-AB007-ZV1.
Positioning function.
The use of options.
(EtherCAT, CompoNet and DeviceNet) to realize the field bus communication 3G3MX2-AB007-ZV1
Driver programming function.
Current vector control.
High starting torque: 0.5Hz up to 200%.
Safety features, in compliance with ISO13849-1:2008 EN (Cat.3/PLd) and IEC60204-1 stop level 0 standard.
Frequency output up to 580H. Function name: 3 phase 400V.
Power: 5.5KW.
Rated output voltage: 3 phase, 380 ~ 480V (the output voltage can not exceed the input voltage) OMRON 3G3MX2-AB007-ZV1.
Built in brake unit (brake resistance needs to be matched).
Weight: 3.5KG.
Dimension (w * h) 260mm *:140.
Outline dimension (deep):155mm.
Mechanical automation concept.
Positioning function.
The use of options.
(EtherCAT, CompoNet and DeviceNet) to realize the field bus communication.
Driver programming function OMRON 3G3MX2-AB007-ZV1.
Current vector control.
High starting torque: 0.5Hz up to 200%.
Safety features, in compliance with ISO13849-1:2008 EN (Cat.3/PLd) and IEC60204-1 stop level 0 standard.
Frequency output up to 580H. Specification: medium capacity type.
Impact resistance: 600W.
Resistance to impact resistance: 35 OMRON Multi function small frequency converter.
The use of resistance to consume the motor regenerative energy, thereby reducing the time to slow down OMRON Multi function small frequency converter.
Alarm output terminal of braking resistor.
When the temperature relay of the braking resistor is activated, a circuit for cutting the main power supply of the frequency converter is formed. Power supply: 3 phase 3 line rated voltage 500V AC.
Rated current: 75A.
Weight: 5.7KG.
Used to reduce the noise generated by the inverter OMRON Multi function small frequency converter.
Try to be close to the transducer for connection. Function name: 3 phase 200V.
Power: 0.2KW.
Maximum output voltage: three phase 200 ~ 240VAC (corresponding input voltage).
Rated voltage, frequency: three-phase power supply 200 ~ 50/60Hz, 240V.
Cooling way: natural wind cooling.
Weight: 1.1kg.
Simple but not simple, casual and not casual.
Homogenization of today, the quality of the subtle show.
Standard configuration has RS485 interface, Modbus bus communication function.

3Hz provides more than 150% torque output 3G3MX2-AB007-ZV1.
2-15kHz carrier frequency, can achieve mute driver.
Equipped with simple energy saving function.
Compact size and uniform, and can be installed close to the side by side.
Signal outpput function for controlling external brake action OMRON 3G3MX2-AB007-ZV1.
Software setting operation mode, no need to connect the control line can be used for speed control.
