4140 Part No:4138 MENNEKES 4140
Brand:
Mennekes

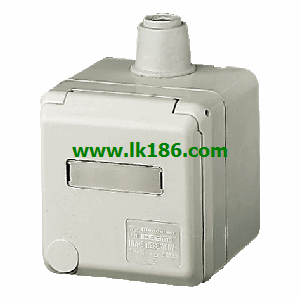

Name: Cepex wall mounted receptacle
Model: 4140
Product Name:Cepex wall mounted receptacle
Part No.:4140.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø.
