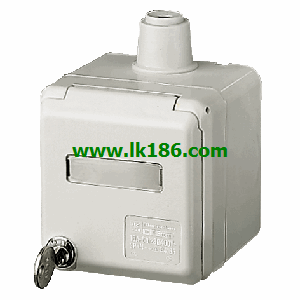

MENNEKES 4162 Cepex wall mounted receptacle MENNEKES 4162
Brand:
Mennekes
Name: Cepex wall mounted receptacle
Model: 4162
Product Name:Cepex wall mounted receptacle
Part No.:4162.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
with safety lock.
two keys.
cannot be dismantled when locked.
on request with identical locks.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø.
