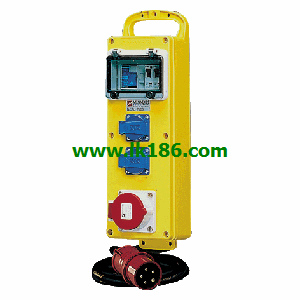

70030 EverGUM receptacle combination MENNEKES 70030 Protection type IP44

Product Name:AMAXX® receptacle combination
Part No.:950004.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
6 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
6 MCB´s 16A, 1p, C.
Pre-fuse max.:63A.
InA:52A.
RDF:0 MENNEKES 70030. 55.
Connection/feeder cable:for 2 cable up to 5 x 25 mm² 70030
Enclosure size:650 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES 70030.
fusing behind a transparent cover.Product Name:AMAXX® receptacle combination
Part No.:930037.
Fitted with:4 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
4 MCB´s 16A, 1p+N, C
1 off button
1 indicator light MENNEKES 70030.
Pre-fuse max.:100A.
InA:30A.
RDF:0.95.
Connection/feeder cable:for 1 cable up to 5 x 25mm².
Enclosure size:390 x 225 mm (H x W).
Protection type IP44 MENNEKES EverGUM receptacle combination.
pre-wired for installation.
hinged to the side MENNEKES EverGUM receptacle combination.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover MENNEKES EverGUM receptacle combination. Product Name:AMAXX®s receptacle combination
Part No.:930004.
Fitted with:2 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V.
Fusing:2 MCB´s 16A, 3p, D
3 MCB´s 16A, 1p, C.
Pre-fuse max.:63A.
InA:46A.
RDF:0.95.
Connection/feeder cable:for 2 cable up to 5 x 25 mm².
Enclosuure size:390 x 225 mm (H x W) 70030.
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES 70030.
fusing behind a transparent cover.
